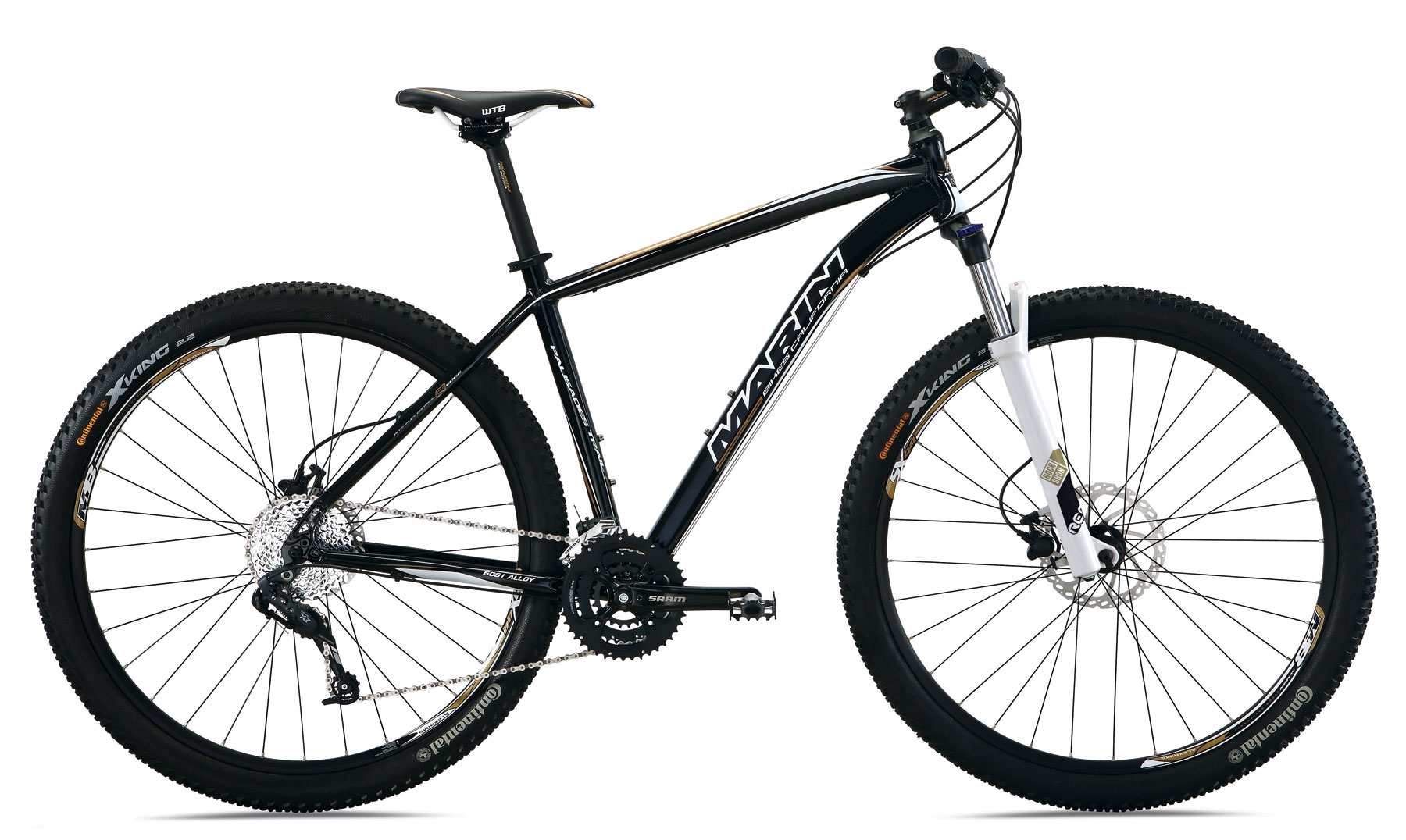

Palisades Trail 29er
Model
| Model Name | Palisades Trail 29er |
| Model Category | Mountain HT |
| Model Series | 29er |
| Model Number | A12-263-1C |
| Sizes USA | 17 19 20.5 22 |
| Frame | 6061 Aluminum 29er, Triple Butted Hydro-Edge II Top and Down Tubes, Double Butted E4 Anti-Flex Seat and Chain Stays |
| Front Suspension | Rock Shox Recon Silver Air 29er, 100mm, Alloy Steerer Tube, External Rebound, TurnKey Lockout |
| Rear Suspension | 0 |
| Shift Lever | SRAM X-5, 3x10 Speed Trigger |
| Derailleur Front | SRAM X-5 |
| Derailleur Rear | SRAM X-7, 10-Speed |
| Brakes Front | Hayes Dyno Comp Hydraulic Disc, 7” Rotor |
| Brakes Rear | Hayes Dyno Comp Hydraulic Disc, 6” Rotor |
| Brake Levers | Hayes Hydraulic Disc |
| Pedals | Alloy Double Sided Mountain |
| Crankset | TruVativ S800 3.1, 44/33/22, 10-Speed |
| Chain Cover | #N/A |
| Bottom Bracket | TruVativ with Sealed Cartridge and Power Spline |
| Chain | KMC X10, 10-Speed |
| Cassette | SRAM PG-1030, 11-36, 10 Speed |
| Hub Rear | Cartridge Bearing, 32 Hole, 6-Bolt Disc, Alloy Freehub Body |
| Hub Front | Cartridge Bearing, 32H Hole, 6-Bolt Disc |
| Rims | Alex SX44, 32 Hole |
| Spokes Nipples | 14 Gauge Black Stainless |
| Tires | Continental Race King, Folding Bead, 29” x 2.2" |
| Saddle | WTB Silverado Sport |
| Seatpost | Comp Alloy Micro Adjust, 30.9mm |
| Stem | Marin OS Alloy Threadless, 31.8mm Bar Clamp |
| Handlebar | Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise |
| Grips | Marin Dual Density |
| Headset | FSA No.10, 1 1/8”, Threadless Internal Bearing |
| Rack | #N/A |
| Fender | #N/A |
| Kickstand | #N/A |
(Average Customer Rating: 2 Ratings)
| Sizes USA | Size | Head Tube Angle (degrees) | Head Tube Length (mm) | Seat Tube Angle (degrees) | Seat Tube Theoretical | Seat Tube Actual (mm) | Top Tube Actual (mm) | Top Tube Effective (mm) | BB Drop | Fork Offset (mm) | Stand Over High | Wheel Base (mm) | Chain Stay (mm) | Seat Post (mm) |
| 13 | 13 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 15 | 15 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| - | 17 | 71.5 | 110 | 73.5 | - | 431.8 | 570.9 | 585 | 60 | - | - | 1071 | 445 | 30.9 |
| - | 19 | 71.5 | 110 | 73.5 | - | 482.6 | 582.2 | 605 | 60 | - | - | 1091 | 445 | 30.9 |
| - | 20.5 | 71.5 | 120 | 73.5 | - | 520.7 | 595.6 | 620 | 60 | - | - | 1106 | 445 | 30.9 |
| - | 22 | 71.5 | 140 | 73.5 | - | 558.8 | 610.1 | 635 | 60 | - | - | 1122 | 445 | 30.9 |
