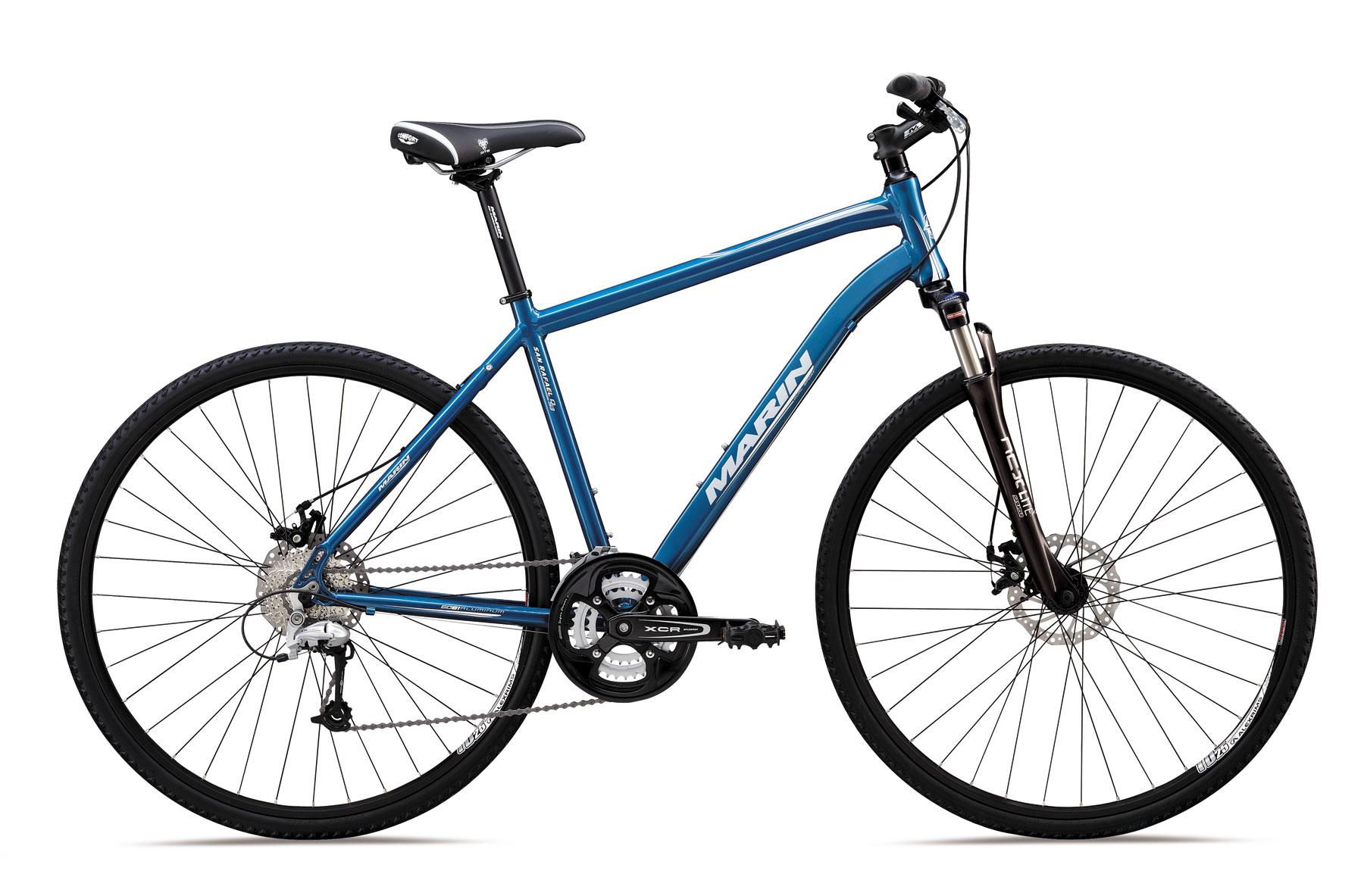

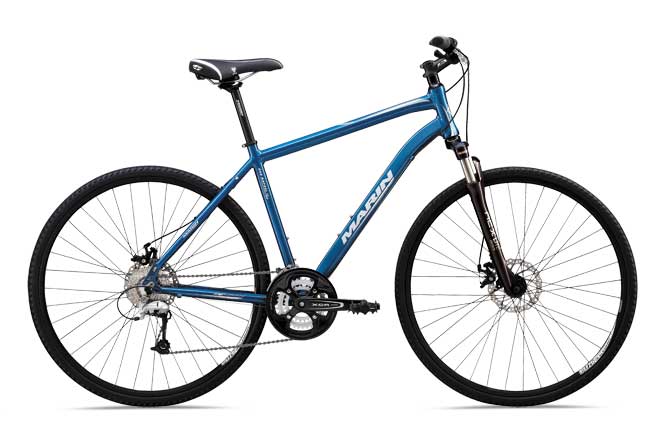

San Rafael DS3
Model
| Model Name | San Rafael DS3 |
| Model Category | Street |
| Model Series | Hybrid |
| Model Number | A12-664-1J |
| Sizes USA | 15 17 19 20.5 22 |
| Frame | 6061 Aluminum with New Edge 3 Top and Down Tubes, E4 Anti-Flex Seat and Chain Stays |
| Front Suspension | Suntour NCXD LO Lite, 63mm with Preload Adjustment and Lockout |
| Rear Suspension | 0 |
| Shift Lever | Shimano Acera Rapid Fire Plus, 9 Speed |
| Derailleur Front | Shimano Acera 9-Speed |
| Derailleur Rear | Shimano Deore |
| Brakes Front | Tektro Novela Mechanical Disc, 6” Rotor |
| Brakes Rear | Tektro Novela Mechanical Disc, 6” Rotor |
| Brake Levers | Shimano with Integrated Shifters |
| Pedals | Composite |
| Crankset | Suntour XCR V3 T418, 48/36/26 with Chain Guard |
| Chain Cover | #N/A |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z99, 9-Speed |
| Cassette | Shimano HG20, 11-32, 9 Speed |
| Hub Rear | Alloy Double Sealed, 36 Hole Disc with QR |
| Hub Front | Alloy Double Sealed, 36 Hole Disc with QR |
| Rims | Alex TD25, Double Wall, 36 Hole with CNC Side Walls |
| Spokes Nipples | 14 Gauge Black Stainless |
| Tires | Duro Spitfire 700x40c with Duro-Shield Puncture Protection |
| Saddle | WTB Comfort V Comp |
| Seatpost | Alloy Micro Adjust, 27.2mm |
| Stem | Forged Alloy Threadless |
| Handlebar | Double Butted 6061 Alloy, 25.4mm Clamp Diameter, 30mm Rise |
| Grips | Dual Density |
| Headset | FSA No.10, 1 1/8”, Threadless Internal Bearing |
| Rack | #N/A |
| Fender | #N/A |
| Kickstand | #N/A |
(Average Customer Rating: 2 Ratings)
| Sizes USA | Size | Head Tube Angle (degrees) | Head Tube Length (mm) | Seat Tube Angle (degrees) | Seat Tube Theoretical | Seat Tube Actual (mm) | Top Tube Actual (mm) | Top Tube Effective (mm) | BB Drop | Fork Offset (mm) | Stand Over High | Wheel Base (mm) | Chain Stay (mm) | Seat Post (mm) |
| - | 15 | 70.5 | 110 | 74.5 | - | 381 | 543.5 | 552.5 | 50 | 45 | - | 1065 | 440 | 27.2 |
| - | 17 | 71 | 110 | 74 | - | 431.8 | 546.6 | 565.5 | 50 | 45 | - | 1067 | 440 | 27.2 |
| - | 19 | 71 | 120 | 73 | - | 482.6 | 555.6 | 580 | 50 | 45 | - | 1070 | 440 | 27.2 |
| - | 20.5 | 71 | 150 | 73 | - | 520.7 | 575.6 | 600.3 | 50 | 45 | - | 1092 | 440 | 27.2 |
| - | 22 | 71 | 180 | 73 | - | 558.8 | 586.6 | 611.1 | 50 | 45 | - | 1104 | 440 | 27.2 |
