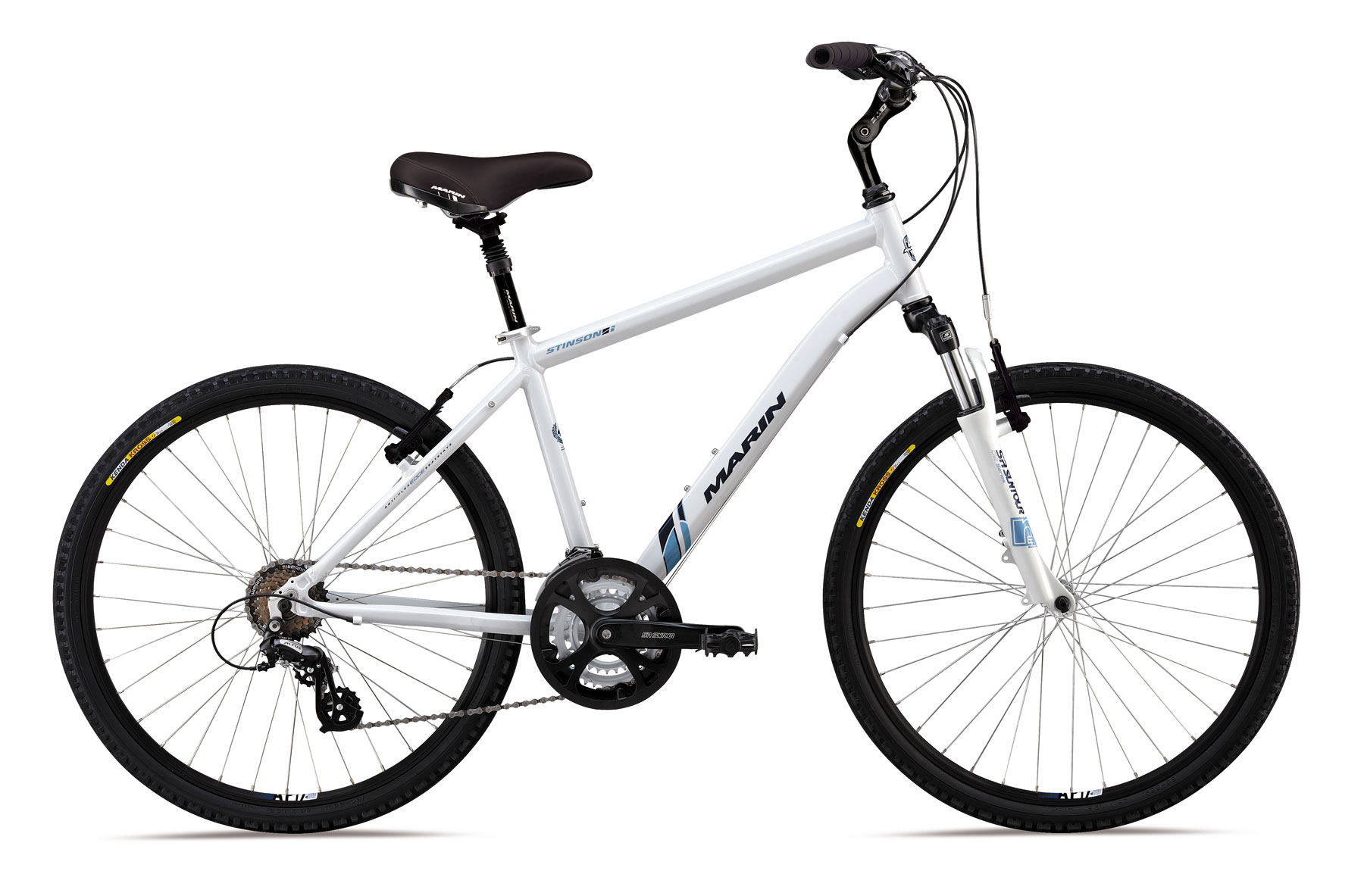

Stinson
Model
| Model Name | Stinson |
| Model Category | Path |
| Model Series | Comfort |
| Model Number | A12-842-1J |
| Sizes USA | 15 17 19 20.5 22 |
| Frame | 6061 Aluminum with Edge 3 Top and Down Tubes, E4 Anti-Flex Seat and Chain Stays |
| Front Suspension | Suntour NEX4100, 63mm with Preload Adjustment |
| Rear Suspension | 0 |
| Shift Lever | Shimano EF51 EZ-FIRE Plus, 7 Speed |
| Derailleur Front | Shimano |
| Derailleur Rear | Shimano Altus |
| Brakes Front | Forged Alloy Linear Pull with Front Power Modulator |
| Brakes Rear | Forged Alloy Linear Pull |
| Brake Levers | Shimano with Integrated Shifters |
| Pedals | Composite |
| Crankset | Suntour XCT V1 T208, 48/38/28 |
| Chain Cover | #N/A |
| Bottom Bracket | Sealed Cartridge |
| Chain | UG51 |
| Cassette | Shimano, 14-28, 7 Speed |
| Hub Rear | Alloy Double Sealed, 36 Hole with QR |
| Hub Front | Alloy Double Sealed, 36 Hole with QR |
| Rims | Alex AP17, 36 Hole |
| Spokes Nipples | 14 Gauge Stainless |
| Tires | 26" x 1.95", Dirt-Street Combo |
| Saddle | Marin Comfort |
| Seatpost | Suspension Post, 27.2mm |
| Stem | Forged Alloy, Adjustable with 0° to 60° Rise |
| Handlebar | Double Butted 6061 Alloy, 25.4, 50mm Rise, Comfort Bend |
| Grips | Tri Density with Comfort Wing |
| Headset | 1 1/8”, Threaded |
| Rack | #N/A |
| Fender | #N/A |
| Kickstand | #N/A |
(Average Customer Rating: 2 Ratings)
| Sizes USA | Size | Head Tube Angle (degrees) | Head Tube Length (mm) | Seat Tube Angle (degrees) | Seat Tube Theoretical | Seat Tube Actual (mm) | Top Tube Actual (mm) | Top Tube Effective (mm) | BB Drop | Fork Offset (mm) | Stand Over High | Wheel Base (mm) | Chain Stay (mm) | Seat Post (mm) |
| - | 15 | 70 | 120 | 73 | - | 381 | 518.9 | 536.6 | 41 | 45 | 733.5 | 1039.5 | 439 | 27.2 |
| - | 17 | 70 | 140 | 73 | - | 431.8 | 532.6 | 554.4 | 41 | 45 | 767.2 | 1058.4 | 439 | 27.2 |
| - | 19 | 70 | 175 | 73 | - | 482.6 | 552.1 | 575.5 | 41 | 45 | 807.7 | 1081.4 | 439 | 27.2 |
| - | 20.5 | 70 | 215 | 73 | - | 520.7 | 572.1 | 596.4 | 41 | 45 | 844.6 | 1104.5 | 439 | 27.2 |
| - | 22 | 70 | 225 | 73 | - | 558.8 | 584.7 | 608.4 | 41 | 45 | 867.2 | 1117 | 439 | 27.2 |
The Women's Fit Geometry bikes that we have designed is more than just about frame modifications. Our engineers have carefully designed the frame of the bicycle to fit a woman's body better, along with choosing parts and accessories that leverage the strengths of a woman's ergonomics. Each Women's Fit Geometry bike is designed to incorporate these elements in order to maximize your cycling experience. Learn More
