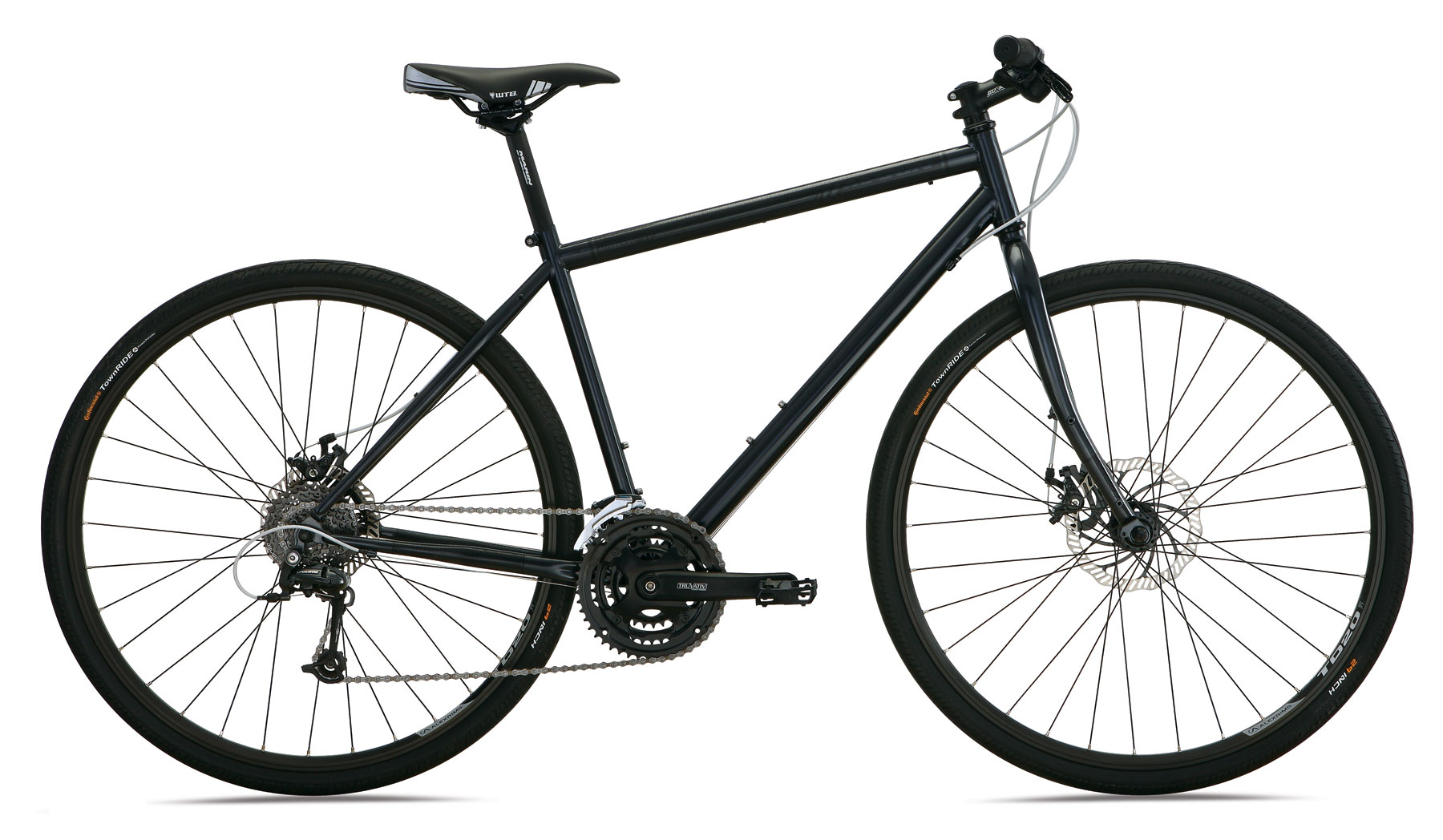

Muirwoods 29er
Model
| Model Name | Muirwoods 29er |
| Model Category | Street |
| Model Series | Urban |
| Model Number | A12-624-1C |
| Sizes USA | 17 19 20.5 22 |
| Frame | Double Butted Cromoly 29er with Edge II Tubing with Double Butted E4 Anti-Flex Seat and Chain Stays |
| Front Suspension | Cromoly Rigid 29er Disc, 1 1/8” |
| Rear Suspension | 0 |
| Shift Lever | Shimano Acera Rapid Fire Plus, 8 Speed |
| Derailleur Front | Shimano Acera |
| Derailleur Rear | Shimano Deore |
| Brakes Front | Tektro Novela Mechanical Disc, 7” Rotor |
| Brakes Rear | Tektro Novela Mechanical Disc, 6” Rotor |
| Brake Levers | Pro 2 Finger with Hidden Clamp |
| Pedals | Alloy Platform |
| Crankset | TruVativ E300 C 3.0, 48/38/28 |
| Chain Cover | #N/A |
| Bottom Bracket | TruVativ with Sealed Cartridge |
| Chain | HG40 |
| Cassette | Shimano HG31, 11-32, 8 Speed |
| Hub Rear | Alloy Double Sealed, 32 Hole Disc |
| Hub Front | Alloy Double Sealed, 32 Hole Disc with Locking QR |
| Rims | Alex TD-20, Double Wall, 32 Hole Disc |
| Spokes Nipples | WTB 14 Gauge Stainless |
| Tires | Continental Town Ride, 29” x 1.6” Urban |
| Saddle | WTB Vigo Comp |
| Seatpost | Alloy Micro Adjust, 27.2mm |
| Stem | Marin OS Alloy Threadless with 31.8mm Bar Clamp |
| Handlebar | Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise |
| Grips | WTB Street Smart with Drop Guard End Plugs |
| Headset | FSA, 1 1/8”, Threadless |
| Rack | #N/A |
| Fender | #N/A |
| Kickstand | #N/A |
(Average Customer Rating: 2 Ratings)
| Sizes USA | Size | Head Tube Angle (degrees) | Head Tube Length (mm) | Seat Tube Angle (degrees) | Seat Tube Theoretical | Seat Tube Actual (mm) | Top Tube Actual (mm) | Top Tube Effective (mm) | BB Drop | Fork Offset (mm) | Stand Over High | Wheel Base (mm) | Chain Stay (mm) | Seat Post (mm) |
| - | 17 | 72 | 115 | 74 | - | 431.8 | 568.5 | 590 | 70 | 45 | 769.4 | 1076 | 445 | 27.2 |
| - | 19 | 72.5 | 125 | 73.5 | - | 482.6 | 581.3 | 605 | 70 | 45 | 798.4 | 1081 | 445 | 27.2 |
| - | 20.5 | 72.5 | 135 | 73.5 | - | 520.7 | 593.3 | 615 | 70 | 45 | 821.1 | 1091 | 445 | 27.2 |
| - | 22 | 72.5 | 155 | 73.5 | - | 558.8 | 610.4 | 630 | 70 | 45 | 848.6 | 1106 | 445 | 27.2 |
The Women's Fit Geometry bikes that we have designed is more than just about frame modifications. Our engineers have carefully designed the frame of the bicycle to fit a woman's body better, along with choosing parts and accessories that leverage the strengths of a woman's ergonomics. Each Women's Fit Geometry bike is designed to incorporate these elements in order to maximize your cycling experience. Learn More
