Bayview Trail 24” Boys

This model is from a previous generation and may not be available.

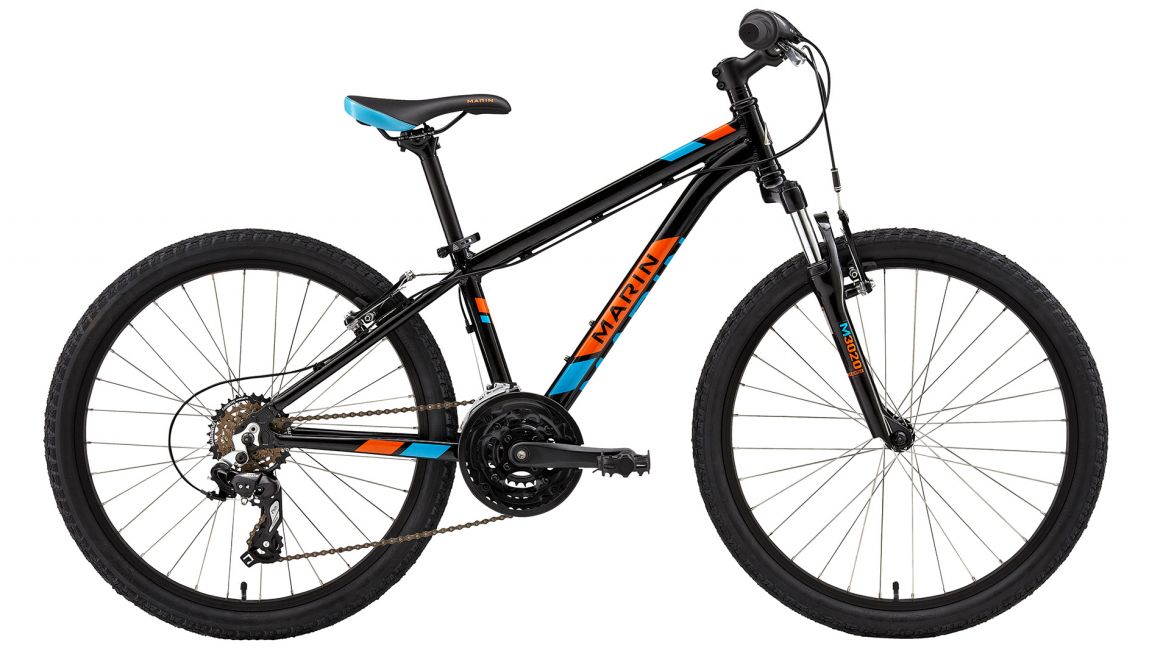

Bayview Trail 24” Boys Gloss Black, Cyan, Orange

Photos:

Videos:

  • 2015 Sport Hard Tail Mountain Bikes Overview
  • Bayview Trail

Bike Description

Featuring the same lightweight aluminum frame construction as our adult bikes, but with features appropriate for the smaller rider, the Bayview Trail models will be the key to your child's freedom, and establish a lifelong love of riding a bike.

Bike Features

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: 6061 Double Butted Aluminum with Edge 3 Top and Down Tubes
Suspension/Fork Specs
Front Fork: Suntour M-3020, 50mm, with Preload Adjust 24
Rear Suspension: 0
Drivetrain Specs
Engine:
Crankset: TruVativ E300 3.0, 42/32/22T
Derailleur Rear: Shimano Altus
Shift Lever: Shimano RevoShift, 7-Speed
Derailleur Front: Shimano Altus
Cassette: Shimano, 14-28, 7-Speed
Bottom Bracket: Sealed Cartridge
Chain: KMC HG50
Wheels Specs
Hub Rear: Marin, 32 Hole
Hub Front: Alloy Double Sealed, 32 Hole with QR
Rim: Alloy
Spokes Nipples: 14 Gauge Stainless
Tires: Kenda, 24
Brake Specs
Brakes Front: Forged Alloy Linear Pull with Power Modulator
Brakes Rear: Forged Alloy Linear Pull
Brake Levers: Shimano with Integrated Shifters
Cockpit
Handlebar: 6061 Alloy, OS-31.8mm, 30mm Rise
Grips: Marin Dual Density
Stem: Marin Forged Alloy Threadless
Headset: FSA, 1 1/8”
Seatpost: Marin Alloy Micro Adjust, 300mm
Saddle: Boys 24”
Accessories
Pedals: Composite
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes 13
Wheel Size
Stack
Reach
Head Tube Angle 70
Stem Length (mm)
Head Tube Length (mm) 100/3.9
Seat Tube Angle 73
Seat Tube Angle Virtual
Seat Tube Actual 321/12.6
Crank Length (mm)
Top Tube Actual (mm) 472.1/18.6
Top Tube Effective (mm) 485.5/19.1
BB Height 254.6/10
BB Drop 25.4/1
Fork Offset 41/1.6
Stand Over Height 595.1
Wheel Base 948/37.3
Chain Stay (mm) 400/15.7
Seat Post (mm) 27.2
