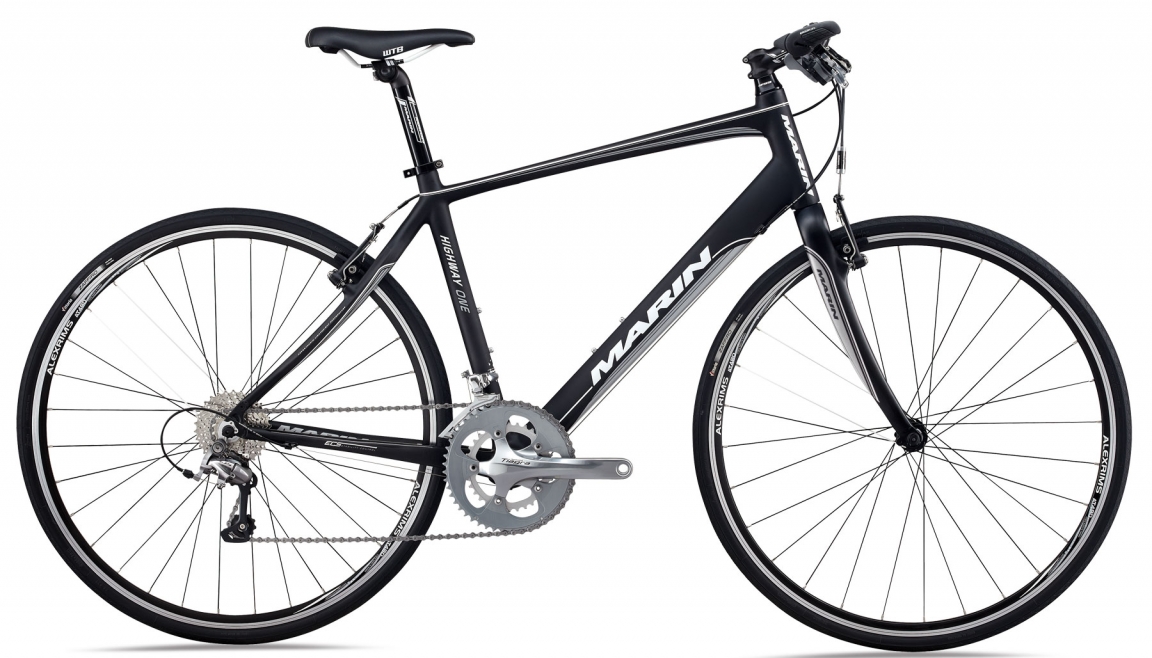

Highway One

This model is from a previous generation and may not be available.

Bike Description

Bike Features

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: T3 Carbon with Oversized Downtube
Suspension/Fork Specs
Front Fork: RFE Carbon with Alloy Steerer Tube
Rear Suspension: 0
Drivetrain Specs
Crankset: Shimano Tiagra, 50/34T
Derailleur Rear: Shimano 105
Shift Lever: Shimano SL-4600, 10 Speed
Derailleur Front: Shimano FD-R770
Cassette: Shimano, 12-30, 10 Speed
Bottom Bracket: Shimano Big Pipe Billet Integrated with Crankset
Chain: Shimano CN-5701 10 Speed
Wheels Specs
Hub Rear: Formula, 32 Hole
Hub Front: Formula, 28 Hole
Rim: Alex AT480, Double Wall w/Eyelet with CNC Side Walls
Spokes Nipples: 14 Gauge Black Stainless
Tires: Vittoria Zaffiro, 700 x 28c with Folding Kevlar Bead and Puncture Resistant Belt
Brake Specs
Brakes Front: Avid Single Digit 5 with Shimano Power Modulator
Brakes Rear: Avid Single Digit 5
Brake Levers: Pro 2 Finger with Hidden Clamp
Handlebar: Double Butted 6061 Alloy, OS-31.8mm, Flat bar
Grips: Ergon dual density grip with integrated bar-end
Stem: Marin Alloy, Threadless
Headset: FSA Orbit C, 1 1/8
Seatpost: Comp Alloy Micro Adjust, 2014 Alloy, 15mm Offset, 300mm
Saddle: WTB Devo Race
Pedals: None
Chain Cover:

Bike Geometry

Sizes 20.5 19 17 15 22
Wheel Size
Head Tube Angle 71.0 71.0 71.0 70.5 71.0
Stem Length (mm)
Head Tube Length (mm) 200 185 160 135 225
Seat Tube Angle 73.0 73.0 74.0 74.5 73.0
Seat Tube Angle Virtual
Seat Tube Actual 520.7 482.6 431.8 381.0 558.8
Crank Length (mm)
Top Tube Actual (mm) 567. 546. 533. 515. 581
Top Tube Effective (mm) 589.0 569.0 553.0 531.0 600.0
BB Height 315 315 315 315 315
BB Drop 50.0 50.0 50.0 50.0 50.0
Fork Offset 45 45 45 45 45
Stand Over Height
Wheel Base
Chain Stay (mm) 432.0 432.0 432.0 432.0 432.0
Seat Post (mm) 31.6 31.6 31.6 31.6 31.6
