Bridgeway

This model is from a previous generation and may not be available.

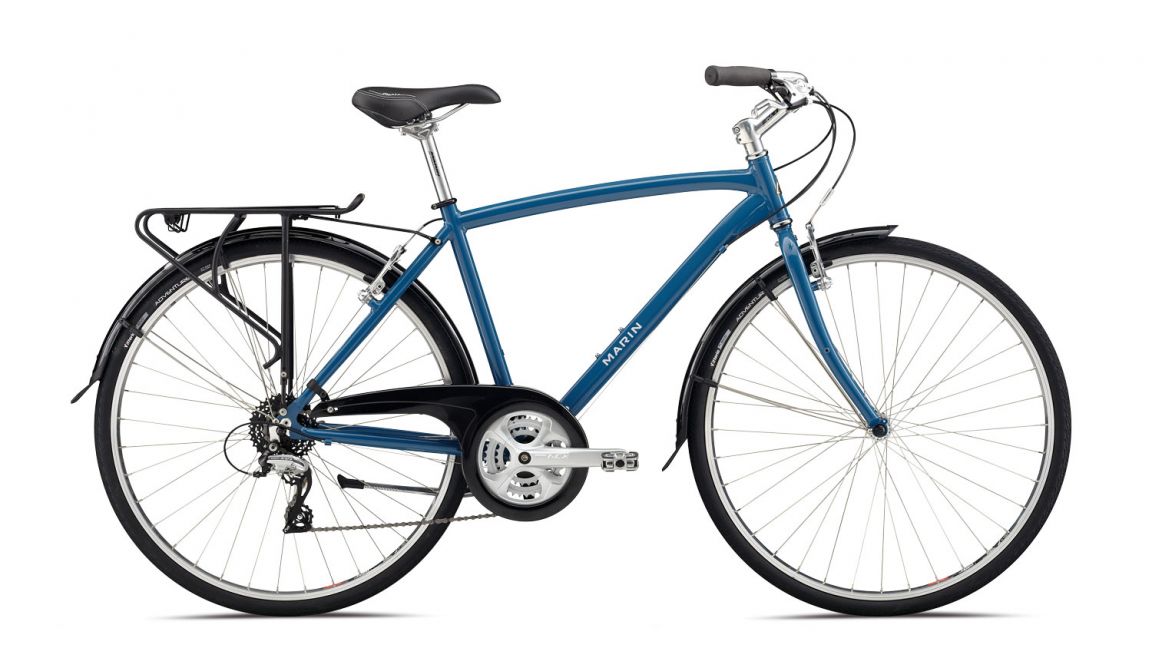

Bridgeway Gloss Blue w/Gloss Blue Graphics

Photos:

Bike Description

The Bridgeway mixes style with function, for riders who want a bike with character, and performance. Designed with the lines of the classic city bike, the Bridgeway is built with modern conveniences like a lightweight aluminum frame and components that make riding up hills or carrying your bike up to the apartment a breeze. Additional components, like scratch and corrosion resistant fenders, accessory rack, stitched saddle, durable double-wall rims and 24-speed Shimano Acera drivetrain complete this stylish bike’s package.

Bike Reviews

Bike Features

Edge 3 Tubing

Edge 3 Tubing

Cold-drawn 6061-T6 aluminium tubing engineered for use in the front triangle of Marin frames. These tubes receive a multi-step process to tune ride quality, strength and weight. Tubing shapes are also designed for specific placement within the frame, with the top tube and down tube having proprietary shape and dimensions. The tubing is shaped at ambient temperatures to increase the tensile strength and reduce elongation values, making an ultimately stiffer and stronger tube. The formed facets of the tubes are designed to increase ride quality by resisting torsional flex at the bottom bracket and head tube area, resulting in a frame that is more efficient in transferring pedaling energy and deflection forces from the fork and terrain.

Bike Specs

All spec subject to change.

Bike Frame Specs
Frame: 6061 Aluminum with New Edge 3 Top and Down Tubes, E4 Anti-Flex Seat Stay
Suspension/Fork Specs
Front Fork: Cromoly 1 1/8”
Rear Suspension: 0
Drive Train Specs
Crankset: Suntour XCT, 48/38/28T
Derailleur Rear: Shimano Acera
Shift Lever: Shimano EF51 EZ-FIRE Plus, 8-Speed
Derailleur Front: Shimano
Cassette: Shimano HG31, 11-32, 8-Speed
Bottom Bracket: Sealed Cartridge
Chain: KMC HG40
Wheels Specs
Hub Rear: Shimano FH-RM30, 36 Hole
Hub Front: Marin, 36 Hole
Rim: Alex DC26, Double Wall with CNC Side Walls
Spokes Nipples: 14 Gauge Stainless
Tires: Schwalbe Road Cruiser 700 x 35c with Kevlar Guard Puncture Protection
Brake Specs
Brakes Front: Forged Alloy Linear Pull with Power Modulator
Brakes Rear: Forged Alloy Linear Pull
Brake Levers: Shimano with Integrated Shifters
Cockpit
Handlebar: Alloy, Classic Bend
Grips: Crayton Retro
Stem: Forged Alloy Threadless, with 20° Rise
Headset: FSA, 1 1/8”
Seatpost: Alloy Micro Adjust, 300mm
Saddle: Marin Metro with Dual Density padding
Accessories
Pedals: Alloy Platform with inlaid TPE grip
Chain Cover: Chain Cover
Rack: Aluminum Carrier Rack

Bike Geometry

Sizes 15 17 19 20.5
Head Tube Angle 70.5 71.0 71.0 71.0
Head Tube Length (mm) 110/4.3 110/4.3 120/4.7 150/5.9
Seat Tube Angle 74.5 74.0 73.0 73.0
Seat Tube Actual 381/15 431.8/17 482.6/19 520.7/20.5
Top Tube Actual (mm) 526.1/20.7 555.4/21.9 570.7/22.5 592.5/23.3
Top Tube Effective (mm) 562.5/22.1 575.5/22.7 589.9/23.2 610.3/24
BB Height 315/12.4 315/12.4 315/12.4 315/12.4
BB Drop 50/2 50/2 50/2 50/2
Fork Offset 45/1.8 45/1.8 45/1.8 45/1.8
Stand Over Height 748/29.4 776/30.6 807/31.8 841/33.1
Wheel Base 1070/42.1 1074/42.3 1078/42.4 1100/43.3
Chain Stay (mm) 440/17.3 440/17.3 440/17.3 440/17.3
Seat Post (mm) 27.2 27.2 27.2 27.2

Need Help Picking the Right Size?

We recommend being fit at your local shop by a professional, but this handy chart can act as a guideline.

Bike Size Guidelines ››
