Bobcat Trail 7.3

This model is from a previous generation and may not be available.

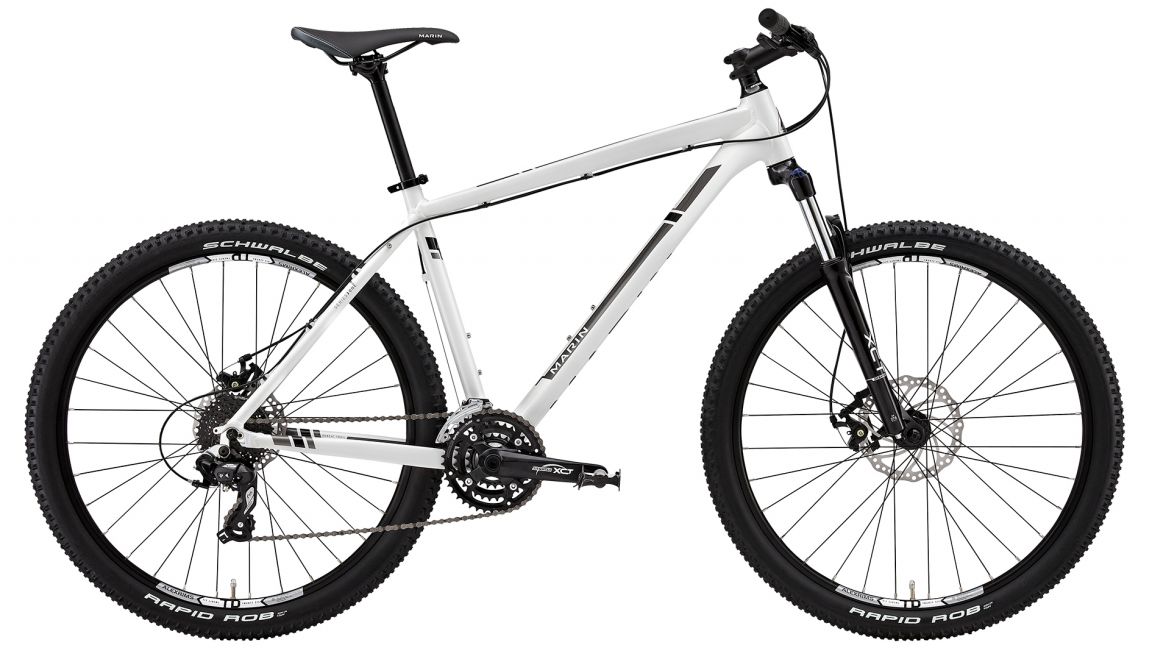

Bobcat Trail 7.3

Photos:

Videos:

  • 2015 Sport Hard Tail Mountain Bikes Overview

Bike Description

The Bobcat Trail 7.3 27.5" features our ultra light triple butted Series 1 frame, 8-speed Shimano drivetrain and 100mm of silky smooth SR Suntour travel with a hydraulic fork lockout, ensuring that your pedaling effort stays on the trail for easy climbing.

Bike Features

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Series One Alloy with SHOT Tech, 27.5
Suspension/Fork Specs
Front Fork: SR Suntour XCT HLO-27.5
Rear Suspension: 0
Drivetrain Specs
Engine:
Crankset: Suntour XCT, 42/32/22T
Derailleur Rear: Shimano Altus, 8 Speed
Shift Lever: Shimano EF51 EZ-FIRE Plus, 8-Speed
Derailleur Front: Shimano M190
Cassette: Shimano HG31, 11-32, 8-Speed
Bottom Bracket: Shimano Cartridge
Chain: KMC Z8, 8-Speed
Wheels Specs
Hub Rear: Formula, 32 Hole
Hub Front: Formula, 32 Hole
Rim: ARAYA, DM-650
Spokes Nipples: 14 Gauge Black Stainless
Tires: Schwalbe Rapid Rob, 27.5 x 2.25
Brake Specs
Brakes Front: Tektro Novela Comp Mechanical Disc, 7” Rotor
Brakes Rear: Tektro Aires Mechanical Disc, 6” Rotor
Brake Levers: Shimano with Integrated Shifters
Cockpit
Handlebar: Double Butted 6061 Alloy, OS-31.8mm, 10mm Rise, 720mm Wide
Grips: Marin Mountain
Stem: Marin Alloy, Threadless
Headset: FSA No.10, 1 1/8”
Seatpost: Marin Alloy Micro Adjust, 350mm
Saddle: Marin Comp Mountain
Accessories
Pedals: Alloy Mountain
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes S M L XL XXL
Wheel Size
Stack 593.309 593.309 602.65 621.32 639.99
Reach 398.61 415.61 432.75 444.04 451.33
Head Tube Angle 69 69 69 69 69
Stem Length (mm)
Head Tube Length (mm) 110 110 120 140 160
Seat Tube Angle 73 73 73 73 73
Seat Tube Angle Virtual 73 73 73 73 73
Seat Tube Actual 382.1 431.8 483 521 559
Crank Length (mm)
Top Tube Actual (mm) 565.4 574.5 592.2 609.2 623.3
Top Tube Effective (mm) 580 597 617 634 647
BB Height 305 305 305 305 305
BB Drop 48 48 48 48 48
Fork Offset 44 44 44 44 44
Stand Over Height 685 725.5 767.8 801.3 834.7
Wheel Base 1082.38 1099.38 1120.1 1138.56 1153.02
Chain Stay (mm) 430 430 430 430 430
Seat Post (mm) 27.2 27.2 27.2 27.2 27.2
