Bobcat Trail 9.5

This model is from a previous generation and may not be available.

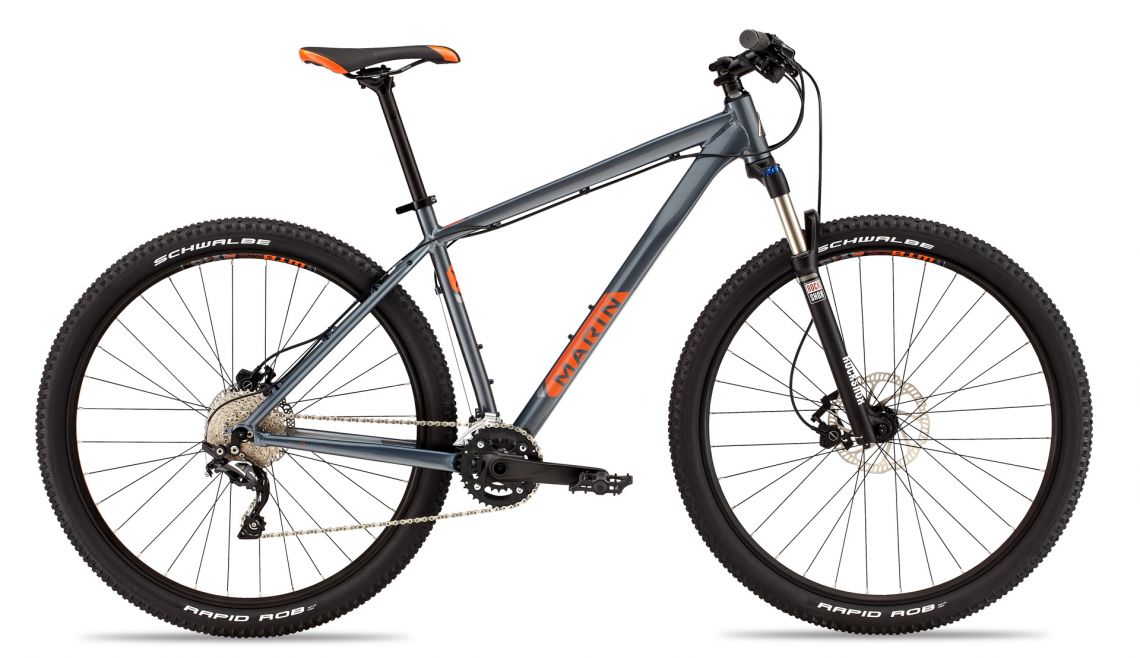

Bobcat Trail 9.5

Photos:

Videos:

  • Sport Hardtail

Bike Description

The most aggressively priced 10-speed mountain bike Marin has ever made, the Bobcat Trail 9.5 29er leads from the top with Shimano hydraulic disc brakes, Shimano SLX rear derailleur and the performance RockShox 30 Silver fork. The Bobcat 9.5 uses our lightweight butted Series 1 frame and Sport level geometry, giving you an easy to ride bike that accelerates like it has rocket boosters.

Bike Features

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Series 1 6061 Aluminum w/ SHOT Tech, 29” Wheels
Suspension/Fork Specs
Front Fork: RockShox 30 Silver 29”, TK Coil Spring, 100mm Travel (80mm Travel Size XS)
Rear Suspension:
Drivetrain Specs
Engine:
Crankset: Forged Alloy, Hollow CrMo Spindle, 36/22T
Derailleur Rear: Shimano SLX Shadow Plus
Shift Lever: Shimano Deore 10-Speed
Derailleur Front: Shimano Deore
Cassette: Sunrace 10-Speed, 11-36T
Bottom Bracket: External Sealed Cartridge Bearing
Chain: KMC X10
Wheels Specs
Hub Rear: Formula, 6-Bolt Disc, 32H
Hub Front: Formula, 6-Bolt Disc, 32H
Rim: WTB SX19, Double Wall, Disc Specific
Spokes Nipples: 14g Black Stainless Steel
Tires: Schwalbe Rapid Rob, 29x2.25”
Brake Specs
Brakes Front: Shimano M355 Hydraulic Disc, 180mm Rotor
Brakes Rear: Shimano M355 Hydraulic Disc, 160mm Rotor
Brake Levers: Tektro Auriga Hydraulic
Cockpit
Handlebar: Marin Flat Top Riser
Grips: Marin Dual Density
Stem: Marin Alloy
Headset: FSA No.10-P
Seatpost: Marin Alloy
Saddle: Marin MTB
Accessories
Pedals: Aluminum Platform
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes S M L XL XXL
Wheel Size
Stack 612.3 633.4 633.4 642.8 661.8
Reach 388.6 397.4 417.4 429.6 439
Head Tube Angle 71 71.5 71.5 71.5 71.5
Stem Length (mm)
Head Tube Length (mm) 110 110 110 120 140
Seat Tube Angle 72.7 72.7 72.7 72.7 72.7
Seat Tube Angle Virtual 73.5 73.9 73.8 73.7 73.6
Seat Tube Actual 381.1 431.6 482.6 502.7 558.8
Crank Length (mm)
Top Tube Actual (mm) 545.7 559.8 579.6 592.9 607.9
Top Tube Effective (mm) 569.8 585.1 605.1 620.3 635.6
BB Height 317 317 317 317 317
BB Drop 60 60 60 60 60
Fork Offset 46 46 46 46 46
Stand Over Height 684.2 732.8 773.8 805.8 839.7
Wheel Base 1073.4 1083.7 1103.7 1119.1 1134.8
Chain Stay (mm) 450 450 450 450 450
Seat Post (mm) 27.2 27.2 27.2 27.2 27.2
