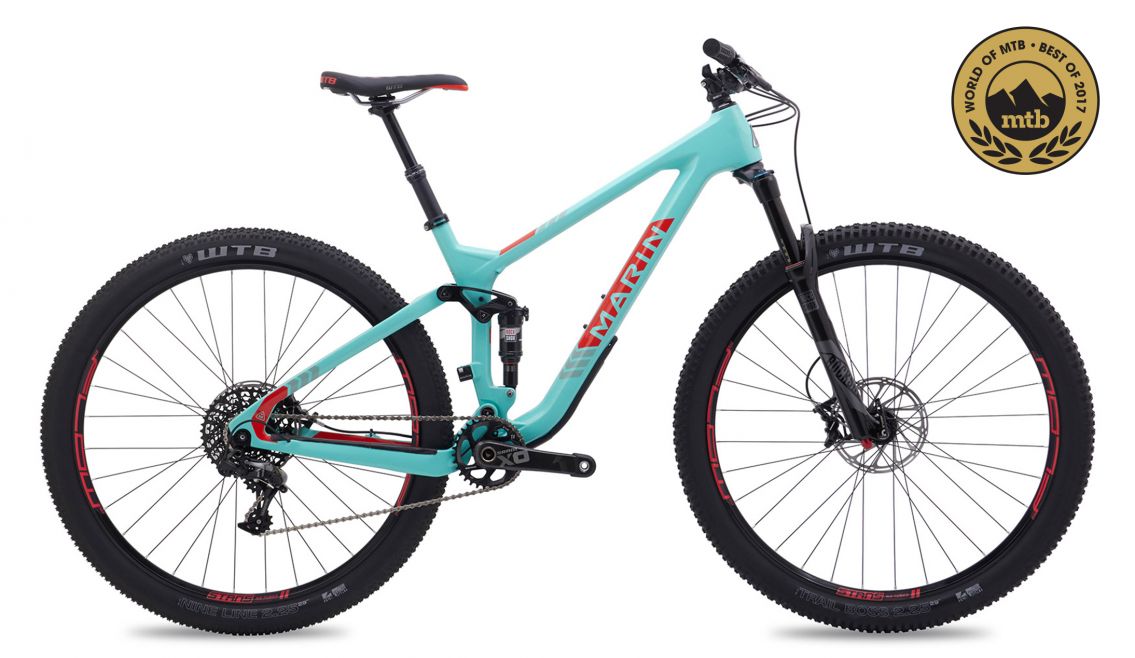

Rift Zone Pro

Rift Zone Pro Teal


Bike Description

The Cream of the Crop: The Rift Zone Pro leads the Rift Zone family with an ultra-light and stiff component selection all wrapped together with Marin's IsoTrac suspension platform designed with 29er Trail specific geometry. With a SRAM X01 Eagle 1x12 drivetrain, a RockShox Pike RCT3 fork and custom-tuned Monarch RT3 shock and a Stan's NoTubes Flow Mk3 wheelset, the Rift Zone Pro allows you to ride faster than you thought possible.

Bike Reviews

Bike Features

Rift Zone Monocoque Carbon

Rift Zone Monocoque Carbon

Monocoque carbon frame features fast rolling 29” wheels with 110mm travel IsoTrac suspension technology with carbon or alloy swingarm.



IsoTrac suspension technology utilizes minimally flexing rear stays to eliminate the need for a rear pivot.

RZ Trail Geometry

RZ Trail Geometry

Trail geometry consists of a low BB, slack head angle, and longer reach for max trail shredding.

Chainstay Post Disc Mount (FULL SUSPENSION)

Chainstay Post Disc Mount (FULL SUSPENSION)

Chainstay mounted post-mount disc brake and 142x12mm thru-axle.

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Carbon Frame and Swingarm, 29” Wheels, 110mm Travel IsoTrac Suspension Platform, Chainstay Mounted Post Mount Brakes, 142x12mm Thru-Axle
Suspension/Fork Specs
Front Fork: RockShox Pike RCT3 29
Rear Suspension: RockShox Monarch RC3, 165x38mm, Rebound Adjustment
Drivetrain Specs
Crankset: SRAM X01 Carbon, Direct Mount 34T Eagle Chainring
Derailleur Rear: SRAM X01 Eagle
Shift Lever: SRAM X01 Eagle 1x12 Speed
Derailleur Front: Marin Bear Claw Bottle Opener
Cassette: SRAM XG 1295 12-Speed, X01 Eagle, 10-50T
Bottom Bracket: SRAM GXP BSA
Chain: SRAM X01 Eagle 12-Speed
Wheels Specs
Hub Rear: Stan's NoTubes Flow MRK3 Pro Wheelset, 12x142mm, 6-Bolt
Hub Front: Stan's NoTubes Flow MRK3 Pro Wheelset, 100x15mm, 6-Bolt
Rim: Stan's NoTubes Flow MRK3 Pro Wheelset, 30mm inner
Spokes Nipples: Stan's NoTubes Flow MRK3 Pro Wheelset
Tires: F: WTB Trail Boss, 29”x2.25” R: WTB Nine Line, 29x2.25”, Folding Bead, Tubeless Compatible
Brake Specs
Brakes Front: SRAM Guide RS Hydraulic Disc, 180mm Rotors
Brakes Rear: SRAM Guide RS Hydraulic Disc, 160mm Rotors
Brake Levers: SRAM Guide RS
Handlebar: Deity DC31 Mohawk Carbon
Grips: Marin Locking
Stem: Gamut Cillos 3D Forged Alloy
Headset: FSA Orbit, Sealed Cartridge Bearings, 1 1/8
Seatpost: KS LEV Integra Dropper Post, Southpaw Remote
Saddle: WTB Volt Race
Pedals: -
Chain Cover:

Bike Geometry

Sizes S M L XL
Wheel Size
Stack 615.46 615.46 624.83 643.59
Reach 418.52 438.52 455.83 465.46
Head Tube Angle 69.65 69.65 69.65 69.65
Stem Length (mm) 60 60 60 60
Head Tube Length (mm) 110 110 120 140
Seat Tube Angle 66 66 66 66
Seat Tube Angle Virtual
Seat Tube Actual 405 432 483 533
Crank Length (mm) 170 175 175 175
Top Tube Actual (mm) 542.5 560.2 574.9 591.2
Top Tube Effective (mm) 595 615 635 650
BB Height 333 333 333 333
BB Drop 38 38 38 38
Fork Offset 51 51 51 51
Stand Over Height 691.52 702.4 725.84 763.83
Wheel Base 1125.4 1145.4 1166.2 1182.8
Chain Stay (mm) 440 440 440 440
Seat Post (mm) 30.9 30.9 30.9 30.9
