San Rafael DS1

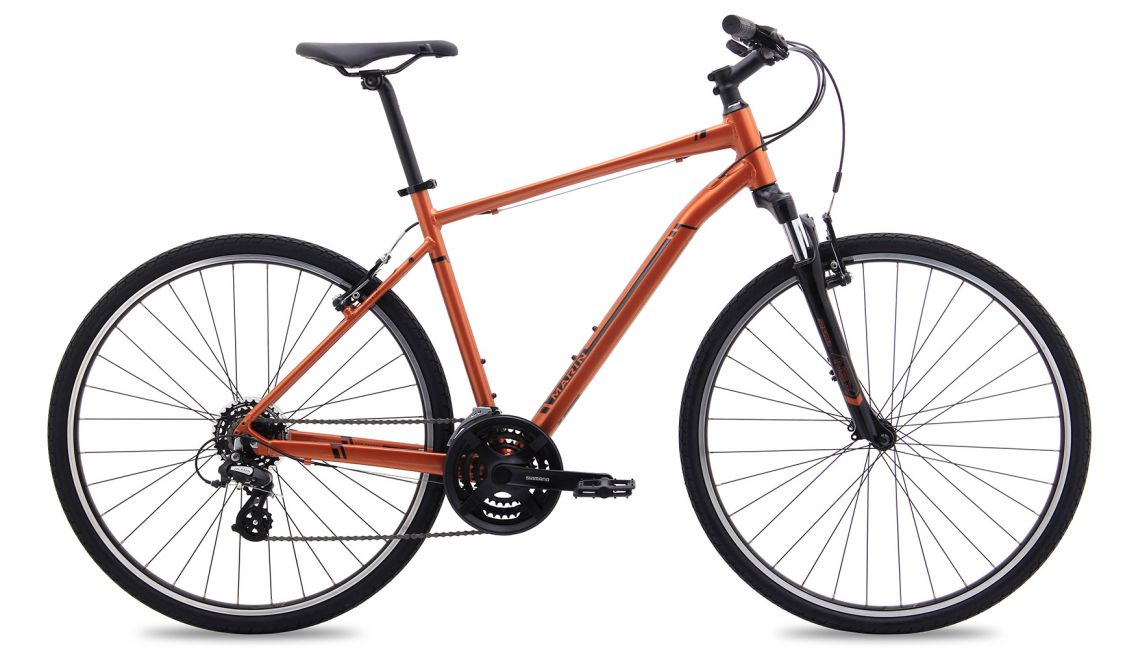

San Rafael DS1 Gloss Orange w/ Black

Photos:

Videos:

  • 2017 Marin Dual Sport

Bike Description

The San Rafael DS1 has the on road/off road versatility of our Dual Sport series, in a price-friendly package for adventuring beyond the end of the road. Built with a Marin Series 2 aluminum frame, the San Rafael features our Dual Sport geometry, to handle rough roads and dirt paths with ease. A 63mm travel Suntour NEX suspension fork helps tame rough terrain while mixed-tread tires provide traction for any condition. A 24-speed Shimano Altus drivetrain provides the perfect gear no matter how steep the hill.

Bike Reviews

Bike Features

DS Frame Series 2

DS Frame Series 2

Lightweight aluminum frame with 3D forged dropouts and dual eyelets.

Dual Sport Fender/Rack Mounts

Dual Sport Fender/Rack Mounts

Easily outfitted with fenders for wet weather and racks for cargo carrying capacity.

Dual Sport Fork

Dual Sport Fork

Suspension forks feature 63mm of travel for comfort and control on mixed surfaces.

Dual Sport Geometry

Dual Sport Geometry

Dual Sport geometry balances an active pedaling position with comfortable, upright seating.

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Series 2 6061 Aluminum, 700C Wheels, Internal Cable Routing
Suspension/Fork Specs
Front Fork: SR Suntour NEX, Preload Adjustment, 63mm Travel
Rear Suspension:
Drivetrain Specs
Engine:
Crankset: Shimano TY301, 42/34/24, Ring Guard
Derailleur Rear: Shimano Altus
Shift Lever: Shimano EF500 8-Speed
Derailleur Front: Shimano FD-TY710
Cassette: Sunrace 8-Speed, 11-32T
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Chain: KMC Z8
Wheels Specs
Hub Rear: Forged Aluminum Alloy, 32H
Hub Front: Forged Aluminum Alloy, 32H
Rim: Marin Aluminum Double Wall, Machined Sidewall
Spokes Nipples:
Tires: Kenda Kahn, 700Cx40
Brake Specs
Brakes Front: Forged Alloy Linear Pull w/ Power Modulator
Brakes Rear: Forged Alloy Linear Pull
Brake Levers: Shimano w/ Integrated Shifters
Cockpit
Handlebar: Marin Riser
Grips: Dual Density Ergonomic
Stem: Marin Alloy
Headset: FSA No.10-P
Seatpost: Marin Alloy
Saddle: Marin Fitness Plush
Accessories
Pedals: Dual Sport Platform
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes XS/15" S/17" M/19" L/20.5" XL/22"
Wheel Size
Stack 588.99 598.41 607.85 621.99 640.84
Reach 382.43 377.94 384.26 400.04 405.28
Head Tube Angle 70.5 70.5 70.5 70.5 70.5
Stem Length (mm) 75 75 90 90 105
Head Tube Length (mm) 100 110 120 135 155
Seat Tube Angle 73.5 73 73 73 73
Seat Tube Angle Virtual
Seat Tube Actual 381 431.8 482.6 520.7 558.8
Crank Length (mm) 170 170 175 175 175
Top Tube Actual (mm) 546.4 541.3 546.9 566.2 577.8
Top Tube Effective (mm) 556.9 560.9 570.1 590.2 601.2
BB Height 291 291 291 291 291
BB Drop 60 60 60 60 60
Fork Offset 41 41 41 41 41
Stand Over Height 660 706.5 749.3 781.4 815
Wheel Base 1054.19 1053.04 1062.7 1083.48 1095.39
Chain Stay (mm) 445 445 445 445 445
Seat Post (mm) 27.2 27.2 27.2 27.2 27.2
