Marin Dual Sport

Marin Dual Sport

Overview

MSRP • $709.99

Color • Satin Silver

FITNESS RIDING


MIXED SURFACES AND TERRAIN


TOWN AND COUNTRY COMMUTING


The San Rafael and San Anselmo are for riders looking to explore
mixed surfaces and terrain, travel the local rail-trail system, and
explore paved paths and dirt doubletrack equally at home. Dual
Sport bikes are a bridge between pavement and dirt, for the
adventurous fitness and recreational rider.

Size Rider Height Range
XS (San Rafael)
4'11" to 5'2"
S (San Rafael)
5'3" to 5'6"
M (San Rafael)
5'6" to 5'10"
L (San Rafael)
5'10" to 6'2"
XL (San Rafael)
6'2" to 6'4"
S (San Anselmo)
4'11" to 5'2"
M (San Anselmo)
5'3" to 5'6"
L (San Anselmo)
5'6" to 5'10"

Spec

Frame

Series 2 Dual Sport, 6061 Aluminum w/ SHOT Tech, 700C Wheels, Women's Fit Geometry, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts

Fork

SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment

Rims

Marin Aluminum Double Wall, Disc Specific

Hub Rear

Forged Aluminum Alloy, Centerlock Disc, 32H

Hub Front

Forged Aluminum Alloy, Centerlock Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Vee Tire, Rail, 700x40, Wire Bead

Derailleur Rear

Shimano Alivio Shadow 9-Speed

Derailleur Front

Shimano Altus

Shift Lever

Shimano Altus 3x9-Speed

Crankset

SR Suntour XCR6, 48/36/26T, Ring Guard

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Chain

KMC X9

Cassette

Shimano Alivio 9-Speed, 11-34T

Brakes Front

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

Brakes Rear

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano Hydraulic

Handlebar

Marin Alloy Flat Top Riser

Stem

Marin Alloy

Grips

Marin Ergonomic Locking

Headset

FSA No.10-P

Seatpost

Marin Alloy

Saddle

Marin Women's Fitness

Pedals

Dual Sport Platform

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type S M L
A. STACK (MM) 588.99 598.41 607.85
B. REACH (MM) 382.43 377.94 384.26
C. HEADTUBE ANGLE 70.5° 70.5° 70.5°
D. HEADTUBE LENGTH (MM) 100 110 120
E. SEATTUBE ANGLE VIRTUAL 73.5° 73° 73°
F. SEATTUBE ANGLE ACTUAL 73.5° 73° 73°
G. SEATTUBE LENGTH (MM) 381 431.8 482.6
H. TOPTUBE ACTUAL (MM) 545.7 540.9 546.7
I. TOPTUBE EFFECTIVE (MM) 556.9 560.9 570.1
J. BOTTOM BRACKET HEIGHT (MM) 291 291 291
K. BOTTOM BRACKET DROP (MM) 60 60 60
L. CHAINSTAY (MM) 445 445 445
M. WHEELBASE (MM) 1054.19 1053.04 1062.7
N. STANDOVER HEIGHT (MM) 624.2 670.4 715
O. FORK OFFSET (MM) 41 41 41
SEATPOST DIAMETER (MM) 27.2 27.2 27.2
HANDLEBAR WIDTH (MM) 640 640 640
STEM LENGTH (MM) 75 75 90
CRANK LENGTH (MM) 170 170 175

Technology

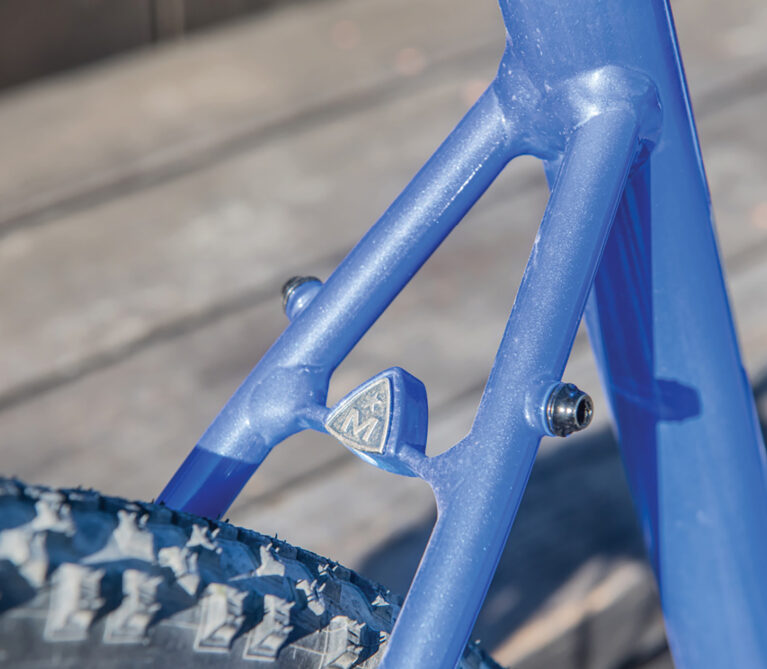

San Rafael San Anselmo 1

Series 2 Aluminum Frame

The San Rafael and San Anselmo have a Series 2 6061 butted andhydroformed aluminum frame with disc brakes, rear rack and fendermounts, a 63mm travel suspension fork, and 700C wheels

San Rafael San Anselmo 2

DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

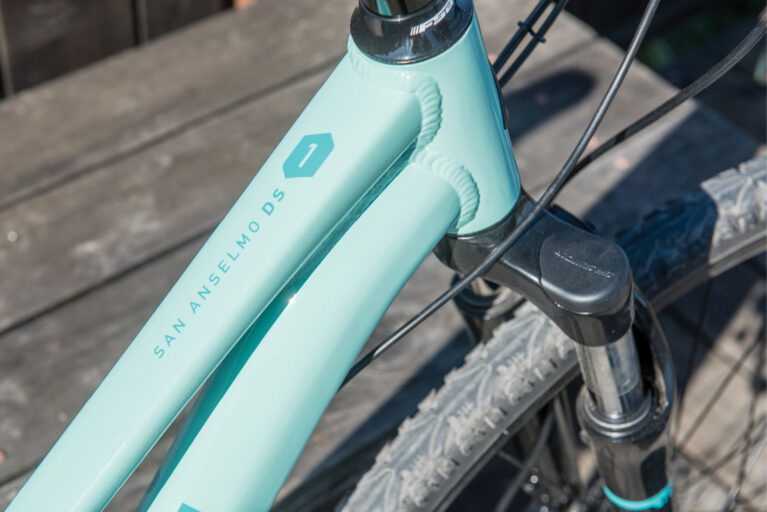

San Rafael San Anselmo 3

Women’s Fit Geometry

The San Anselmo features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and short reach brake levers.

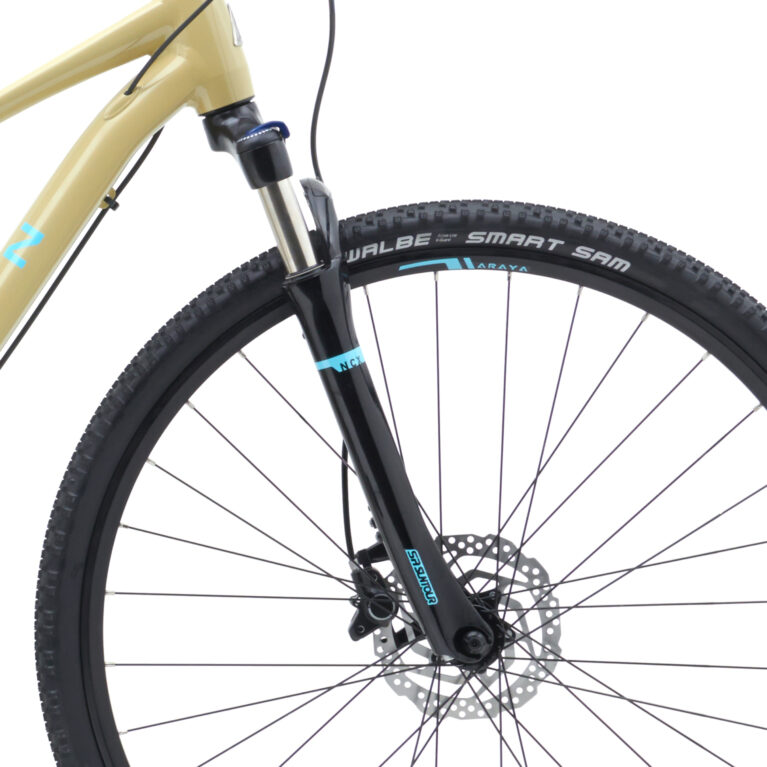

San Ans Fork Tech

Suspension Fork

Suspension forks feature 63mm of travel for comfort and control on mixed surfaces.

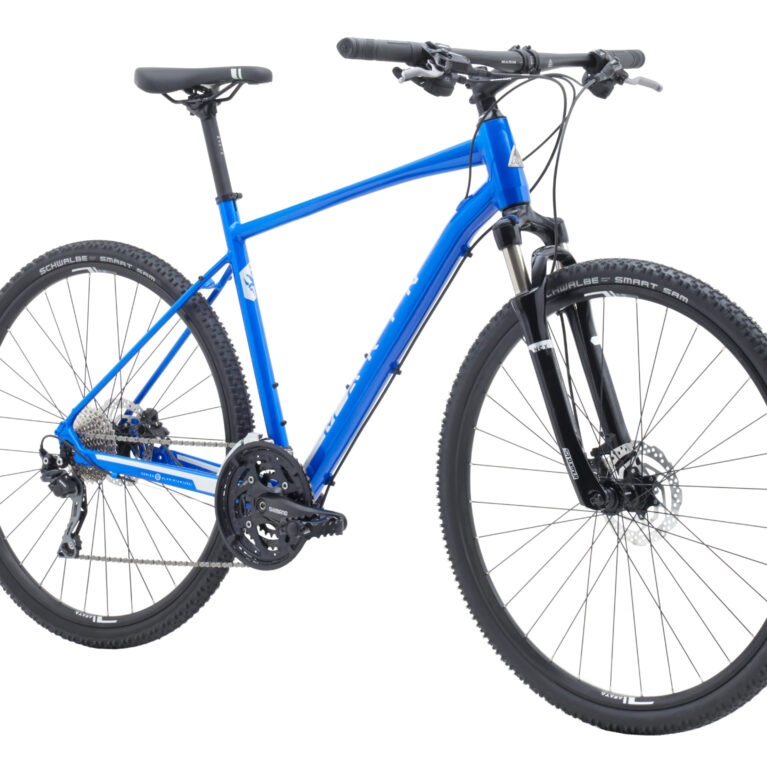

San Ans Geo Tech

DS Geometry

Dual Sport geometry balances an active pedaling position with comfortable, upright seating.
