Marin Fitness

Marin Fitness

Overview

MSRP • $579.99

Color • Satin Black

FITNESS ROAD RIDING

COMMUTING

BIKE PATH RIDING

The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.

Size Rider Height Range
XS (Fairfax)
4'11" to 5'2"
S (Fairfax)
5'3" to 5'6"
M (Fairfax)
5'6" to 5'10"
L (Fairfax)
5'10" to 6'2"
XL (Fairfax)
6'2" to 6'4"
-----------------
---- to ----
S (Terra Linda)
4'11" to 5'2"
M (Terra Linda)
5'3" to 5'6"
L (Terra Linda)
5'6" to 5'10"

Spec

FRAME

Series 2 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts

FORK

6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

RIMS

Marin Aluminum Double Wall, Machined Sidewall

HUB REAR

Forged Aluminum Alloy, Disc, 32H

HUB FRONT

Forged Aluminum Alloy, Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire, Baldy, 700x32, Puncture Protection, Wire Bead

DERAILLEUR REAR

Shimano Acera Shadow, 8-Speed

DERAILLEUR FRONT

Shimano M191

SHIFT LEVER

Shimano Altus RapidFire

CRANKSET

Shimano TY301 48/38/28

BOTTOM BRACKET

Sealed Cartridge Bearings, Square Taper

CHAIN

KMC Z8

CASSETTE

SunRace 8-Speed, 11-34T

BRAKES FRONT

Tektro M275 Hydraulic Disc Brake

BRAKES REAR

Tektro M275 Hydraulic Disc Brake

BRAKE LEVERS

Tektro Hydraulic

HANDLEBAR

Marin Alloy Flat

STEM

Marin 3D Forged Alloy

GRIPS

Marin Ergonomic Locking

HEADSET

FSA

SEATPOST

Marin Alloy

SADDLE

Marin Fitness Plush

PEDALS

Commute Platform

EXTRAS

---

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type XS S M L XL
STACK (A) 557.89 576.97 596.04 615.11 643.73
REACH (B) 384.74 394.09 403.44 411.94 423.19
HEADTUBE ANGLE (C) 72.5° 72.5° 72.5° 72.5° 72.5°
HEADTUBE LENGTH (D) 135 155 175 195 225
SEATTUBE ANGLE (VIRTUAL) (E) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE ANGLE (ACTUAL) (F) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE LENGTH (G) 381 431.8 482.6 520.7 558.8
TOPTUBE (ACTUAL) (H) 530.6 542.6 557.2 574.6 596.6
TOPTUBE (EFFECTIVE) (I) 550 565 580 600 620
BOTTOM BRACKET HEIGHT (J) 300 300 300 300 300
BOTTOM BRACKET DROP (K) 65 65 65 65 65
CHAINSTAY (L) 432 432 432 432 432
WHEELBASE (M) 1014.42 1029.78 1045.15 1059.66 1079.93
STANDOVER HEIGHT (N) 679.9 725.7 770 803.5 839.1
FORK OFFSET (O) 45 45 45 45 45
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 640 640 660 660 660
STEM LENGTH 70 70 90 90 90
CRANK LENGTH 170 170 175 175 175

Technology

Tech 1 Fitness Transit Series 2

SERIES 2 FRAMES

Series 2 frames feature a 6061 aluminum frame with disc brake mounts, internal cable routing, and fender and rack mounts.

Tech 2 Fitness Transit

DISC BRAKES

Disc brakes on all Fairfax and Terra Linda models provide smooth, controlled stopping in all conditions with minimal maintenance.

Tech Sports Geometry Fitness Transit

SPORTS FITNESS GEOMETRY

Fairfax models are designed with Marin’s sport fitness geometry, with a 72.5° headtube angle, giving the bike a light and lively feel, while maintaining stability and control.

Gallery Image 3 Fitness Transit

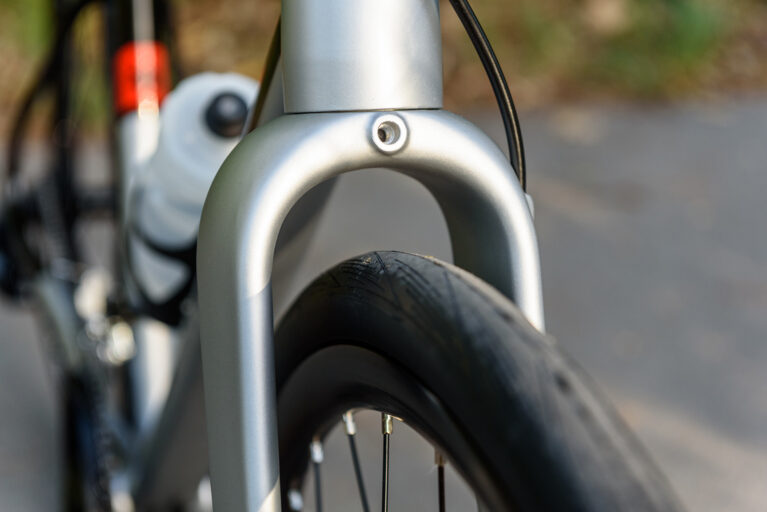

PUNCTURE RESISTANT TIRES

The Fairfax 2 is spec’d with puncture resistant 32mm wide tires with additional fender clearance, for comfortable and fast riding with protection from many common road hazards.
