Marin Fitness
Overview
MSRP • $579.99
Color • Gloss White
FITNESS ROAD RIDING
COMMUTING
BIKE PATH RIDING

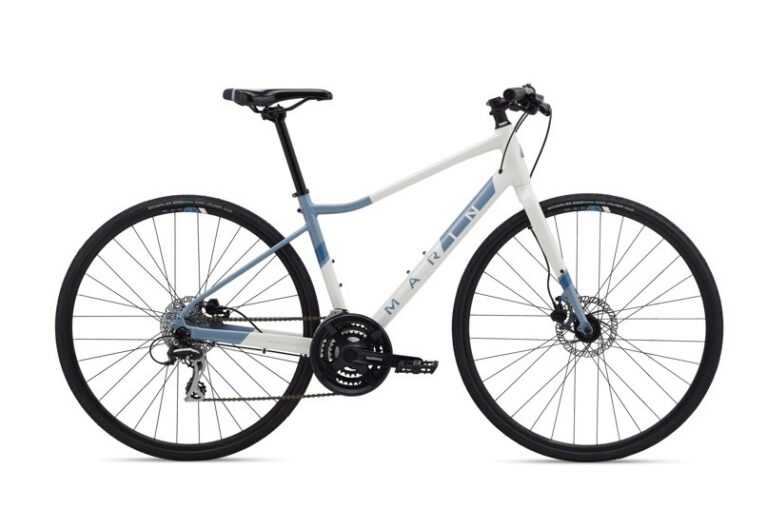

The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.
| Size | Rider Height Range |
|---|---|
| XS (Fairfax) | 4'11" to 5'2" |
| S (Fairfax) | 5'3" to 5'6" |
| M (Fairfax) | 5'6" to 5'10" |
| L (Fairfax) | 5'10" to 6'2" |
| XL (Fairfax) | 6'2" to 6'4" |
| ----------------- | ---- to ---- |
| S (Terra Linda) | 4'11" to 5'2" |
| M (Terra Linda) | 5'3" to 5'6" |
| L (Terra Linda) | 5'6" to 5'10" |
Spec
FRAME
Series 2 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
FORK
6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
RIMS
Marin Aluminum Double Wall, Machined Sidewall
HUB REAR
Forged Aluminum Alloy, Disc, 32H
HUB FRONT
Forged Aluminum Alloy, Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire, Baldy, 700x32, Puncture Protection, Wire Bead
DERAILLEUR REAR
Shimano Acera Shadow, 9-Speed
DERAILLEUR FRONT
Shimano M191
SHIFT LEVER
Shimano Altus Rapid Fire
CRANKSET
Shimano TY301 48/38/28
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC Z8
CASSETTE
SunRace 8-Speed, 11-34T
BRAKES FRONT
Tektro M275 Hydraulic Disc Brake
BRAKES REAR
Tektro M275 Hydraulic Disc Brake
BRAKE LEVERS
Tektro Hydraulic
HANDLEBAR
Marin Alloy Flat
STEM
Marin 3D Forged Alloy
GRIPS
Marin Ergonomic Locking
HEADSET
FSA
SEATPOST
Marin Alloy
SADDLE
Marin Women's Fitness Plush
PEDALS
Commute Platform
EXTRAS
---
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE
Geometry
| Type | XS | S | M | L |
|---|---|---|---|---|
| STACK (A) | 544 | 559.89 | 576.97 | 596.04 |
| REACH (B) | 374 | 384.74 | 394.09 | 403.44 |
| HEADTUBE ANGLE (C) | 72.5° | 72.5° | 72.5° | 72.5° |
| HEADTUBE LENGTH (D) | 125 | 135 | 155 | 175 |
| SEATTUBE ANGLE (VIRTUAL) (E) | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE ANGLE (ACTUAL) (F) | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE LENGTH (G) | 350 | 381 | 431.8 | 482.6 |
| TOPTUBE (ACTUAL) (H) | 519 | 531.9 | 543 | 556.8 |
| TOPTUBE (EFFECTIVE) (I) | 535 | 550 | 565 | 580 |
| BOTTOM BRACKET HEIGHT (J) | 300 | 280 | 280 | 280 |
| BOTTOM BRACKET DROP (K) | 65 | 65 | 65 | 65 |
| CHAINSTAY (L) | 432 | 432 | 432 | 432 |
| WHEELBASE (M) | 1009.1 | 1014.42 | 1029.78 | 1045.15 |
| STANDOVER HEIGHT (N) | 589 | 613.7 | 656.9 | 700.5 |
| FORK OFFSET (O) | 45 | 45 | 45 | 45 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 640 | 620 | 620 | 640 |
| STEM LENGTH | 50 | 70 | 70 | 90 |
| CRANK LENGTH | 170 | 170 | 170 | 175 |
Technology
SERIES 2 FRAMES
Series 2 frames feature a 6061 aluminum frame with disc brake mounts, internal cable routing, and fender and rack mounts.
DISC BRAKES
Disc brakes on all Fairfax and Terra Linda models provide smooth, controlled stopping in all conditions with minimal maintenance.
Women's Fit Geometry
The Terra Linda features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and short reach brake levers.
PUNCTURE RESISTANT TIRES
The Terra Linda 2 is spec’d with puncture resistant 32mm wide tires with additional fender clearance, for comfortable and fast riding with protection from many common road hazards.
