Marin Presidio

Marin Presidio

Overview

MSRP • $979.99

Color • Satin Black

COMMUTING

CITY TRANSIT

The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Internal gearing, disc brakes, puncture resistant tires and highperformance belt drives or corrosion-resistant chains arebuilt tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.

Size Rider Height Range
XS
4'11" to 5'1"
S
5'1" to 5'5"
M
5'5" to 5'9"
L
5'9" to 6'1"
XL
6'1" to 6'3"

Spec

FRAME

Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts

FORK

6061 Aluminum, Straight-Blade, Post-Mount Disc

RIMS

Marin Aluminum Double Wall, 25mm Tall, Disc Specific

HUB REAR

Shimano Nexus 8D 8-Speed Internally Geared Hub, Centerlock Disc, 32H

HUB FRONT

Forged Aluminum Alloy, Centerlock Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire, Baldy, 700x32, Puncture Protection, Reflective Sidewall, Wire Bead

DERAILLEUR REAR

---

DERAILLEUR FRONT

---

SHIFT LEVER

MicroSHIFT SL 8-Speed IG Shifter

CRANKSET

Gates Carbon Drive S150, 50T

BOTTOM BRACKET

Sealed Cartridge Bearings, Square Taper

BELT

Gates Carbon Drive CDN Centertrack Belt,115T

COG

Gates Carbon Drive CDN Center Track, 22T

BRAKES FRONT

Tektro R290 Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKES REAR

Tektro R290 Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Tektro Hydraulic

HANDLEBAR

Marin Alloy Flat Top Riser

STEM

Marin 3D Forged Alloy

GRIPS

Marin Ergonomic Locking

HEADSET

FSA Orbit CE, Sealed Cartridge Bearings

SEATPOST

Marin Alloy

SADDLE

Marin Fitness

PEDALS

Commute Platform

EXTRAS

---

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type XS S M L XL
STACK (A) 557.89 576.97 596.04 615.11 643.72
REACH (B) 384.74 394.09 403.44 411.94 423.19
HEADTUBE ANGLE (C) 72.5° 72.5° 72.5° 72.5° 72.5°
HEADTUBE LENGTH (D) 135 155 175 195 225
SEATTUBE ANGLE (VIRTUAL) (E) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE ANGLE (ACTUAL) (F) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE LENGTH (G) 381 431.8 482.6 520.7 558.8
TOPTUBE (ACTUAL) (H) 530.6 542.6 557.2 576.2 596.6
TOPTUBE (EFFECTIVE) (I) 550 565 580 600 620
BOTTOM BRACKET HEIGHT (J) 280 280 280 280 280
BOTTOM BRACKET DROP (K) 65 65 65 65 65
CHAINSTAY (L) 435 435 435 435 435
WHEELBASE (M) 1017.5 1032.8 1048.2 1062.7 1083
STANDOVER HEIGHT (N) 659.9 705.6 750 783.5 819.1
FORK OFFSET (O) 45 45 45 45 45
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 620 620 640 640 640
STEM LENGTH 70 70 90 90 110
CRANK LENGTH 170 170 175 175 175

Technology

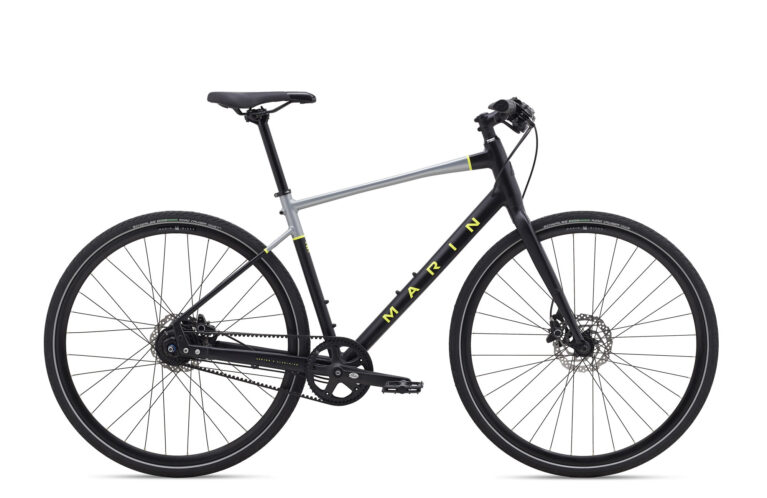

19 Presidio 3 2000X1298

SERIES 2 FRAMES

The Presidio 3 has a Series 2 Commute 6061 aluminum frame, a Cr-Mo Steel fork, disc brakes, and rack and fender mounts with 700C wheels.

Tech Image 3 Presidio

DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in allconditions with minimal maintenance.

Tech Image 4 Presidio

INTERNALLY GEARED HUBS

Internally geared hubs package the gearing into a compact, maintenance-free package.
