Marin Gestalt

Marin Gestalt

Overview

MSRP • $1,299.99

Color • Indigo Blue

ADVENTURE ROAD RIDING


LONG DISTANCE COMMUTING


ENDURANCE AND ALL-WEATHER PAVEMENT


The Gestalt is for the drop bar rider that doesn’t want to
stick to pavement, and can’t help but get dirty no matter the
route. Long distance commuters and all-weather riders will
appreciate the fender and rack mounts and the sure stopping
disc brakes, and the larger volume tires are right at home on
that unexpected detour.

Size Rider Height Range
50cm
5'0" to 5'3"
52cm
5'3" to 5'6"
54cm
5'6" to 5'9"
56cm
5'9" to 6'0"
58cm
6'0" to 6'2"
60cm
6'2" to 6'4"

Spec

Frame

Series 3 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts

Fork

Carbon w/ Alloy Steerer, Post-Mount Disc

Rims

Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible

Hub Rear

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Hub Front

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Schwalbe G-ONE Performance, 700Cx30, Folding Bead, Kevlar Puncture Protection

Derailleur Rear

Shimano Tiagra 10-Speed

Derailleur Front

Shimano Tiagra

Shift Lever

Shimano Tiagra 2x10-Speed

Crankset

FSA Gossamer, 50-34t

Bottom Bracket

Shimano Hollowtech II

Chain

KMC X10

Cassette

Shimano Tiagra HG-500, 11-34T

Brakes Front

Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

Brakes Rear

Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

Brake Levers

Shimano w/ Integrated Shifters

Handlebar

Marin Butted Alloy, Compact 12º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Perforated Tape

Headset

FSA No.8B

Seatpost

Marin Alloy

Saddle

Marin Beyond Road Concept

Pedals

Commute Platform

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type 50 52 54 56 58 60
A. STACK (MM) 549.8 565 579.2 599.2 618.3 637.4
B. REACH (MM) 342.4 357.7 373.4 381.8 396 399
C. HEADTUBE ANGLE 72° 72.25° 72.25° 72.5° 72.5° 72.5°
D. HEADTUBE LENGTH (MM) 120 135 150 170 190 210
E. SEATTUBE ANGLE VIRTUAL 74° 73.5° 73.5° 73° 73° 72.5°
F. SEATTUBE ANGLE ACTUAL 74° 73.5° 73.5° 73° 73° 72.5°
G. SEATTUBE LENGTH (MM) 470 490 510 530 550 570
H. TOPTUBE ACTUAL (MM) 481.8 504.9 524.8 542.8 562.4 575.6
I. TOPTUBE EFFECTIVE (MM) 500 525 545 565 585 600
J. BOTTOM BRACKET HEIGHT (MM) 271 271 271 271 271 271
K. BOTTOM BRACKET DROP (MM) 72 72 72 72 72 72
L. CHAINSTAY (MM) 415 415 415 415 415 415
M. WHEELBASE (MM) 953.8 971.5 991.9 1004 1024.2 1033.2
N. STANDOVER HEIGHT (MM) 760 776.5 793 812 831.1 849.5
O. FORK OFFSET (MM) 45 45 45 45 45 45
SEATPOST DIAMETER (MM) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (MM) 400 420 420 440 440 440
STEM LENGTH (MM) 80 80 80 90 90 110
CRANK LENGTH (MM) 170 170 175 175 175 175

Technology

Gestalt 1

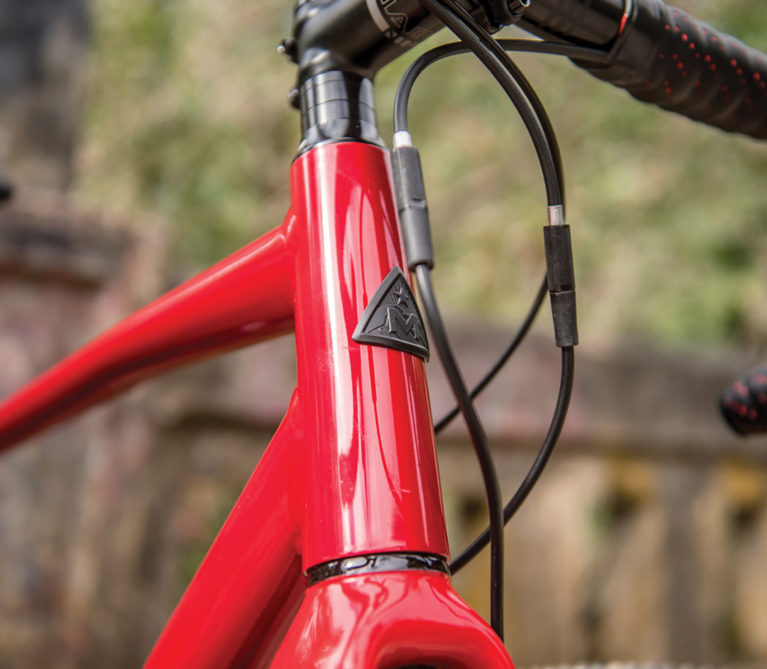

Series 3 or 4 Frame

The Gestalt features a butted and formed Series 3 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 4 frames add a 6066 aluminum top tube, Naild 12.3.9 locking quick release thru-axles, and a tapered headtube.

Gestalt 2

BEYOND ROAD GEOMETRY

Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

Gestalt 3

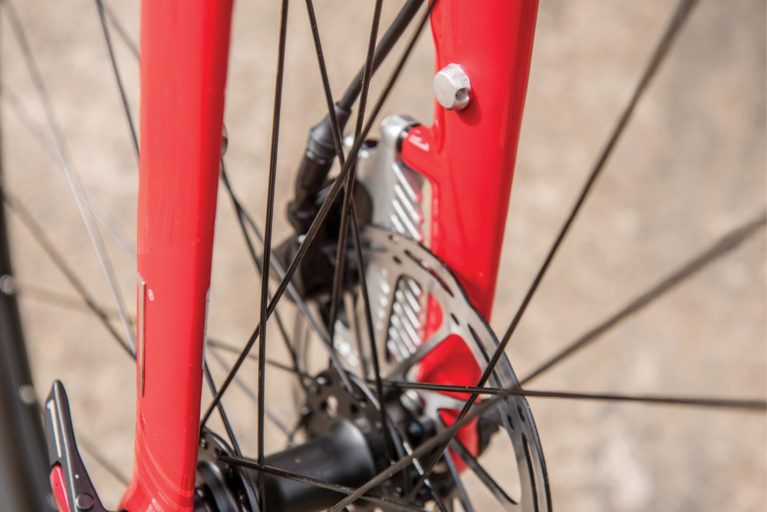

DISC BRAKES

Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

Gestalt 4

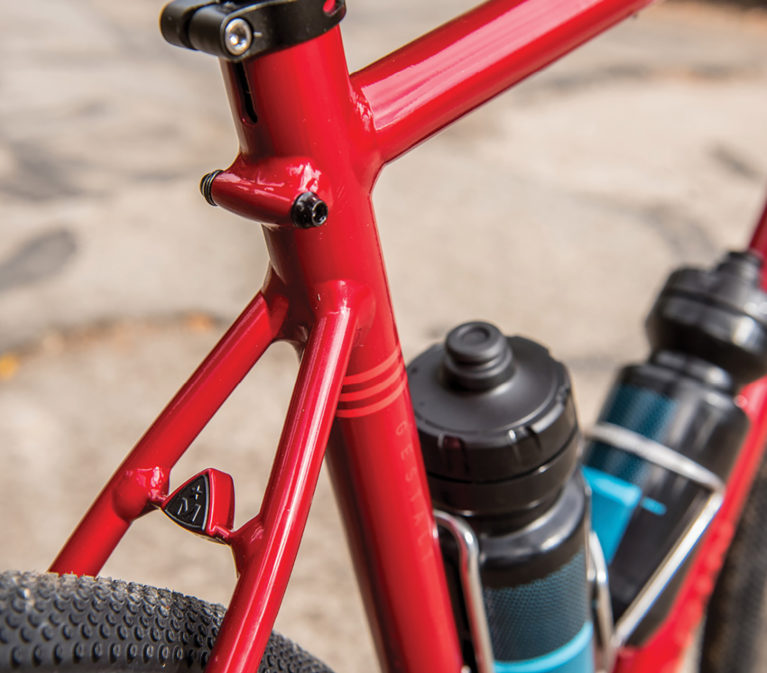

TIRE CLEARANCE

The Gestalt frame and fork has clearance for up to 700Cx35 tires.

Reviews

  • "A cracking bike for anyone wanting a versatile machine that'll do everything from commuting to gravel grinding"

  • "They enjoy steaming along the gravel or flicking through the trees as much as they like to get busy on tarmac while commuting to and from the office"
