Marin Hawk Hill

Marin Hawk Hill

Overview

MSRP • $1,949.99

Color • Gloss Hi-Vis Green

ALL AROUND TRAIL ENJOYMENT


HAVING FUN


The Hawk Hill is our most playful trail bike, made for the rider
that catches a bit of air off of every root in the trail, is always
looking for an alternate line, and ends every ride with a smile.
This is an all-around suspension bike with trail performance far
out stretching the asking price.

Size Rider Height Range
XS
5'1" to 5'4"
S
5'4" to 5'7"
M
5'7" to 5'10"
L
5'10" to 6'1"
XL
6'1" to 6'4"

Spec

Frame

Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle

Front Suspension

RockShox Recon RL 27.5", 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset

Rear Suspension

RockShox Monarch R Debonair, 190x51mm, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 22.2mm x M8 Hardware

Rims

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear

Formula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H

Hub Front

Formula, 110x15mm, Centerlock Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Vee Tire, Crown Gem 27.5x2.35", Dual Control Compound, Folding Bead, Tubeless Compatible

Derailleur Rear

SRAM NX 11-Speed

Derailleur Front

- - -

Shift Lever

SRAM NX 1x11-Speed

Crankset

FSA Comet, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket

External Sealed Cartridge Bearings

Chain

KMC X11 Extra Light

Cassette

SunRace 11-Speed, 11-42T

Brakes Front

Shimano BR-M315 Hydraulic Disc, 180mm Rotor

Brakes Rear

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano BL-M315 Hydraulic

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 780mm Width, 4º Up, 9º Back

Stem

Marin 3D Forged Alloy, 45mm

Grips

Marin Single Clamp Locking

Headset

FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

TranzX Dropper Post, YSP15 w/ 1x Remote, Size S 350mm Length 100mm Travel, All Other Sizes: 400mm Length 120mm Travel

Saddle

Marin Speed Concept

Pedals

- - -

Extras

TranzX Bolt-on Thru-Axle

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type S M L XL
A. STACK (MM) 578.6 583.2 587.8 592.4
B. REACH (MM) 418 437.2 450.9 464.5
C. HEADTUBE ANGLE 67.5° 67.5° 67.5° 67.5°
D. HEADTUBE LENGTH (MM) 115 120 125 130
E. SEATTUBE ANGLE VIRTUAL 73.8° 73.5° 73.2° 73°
F. SEATTUBE ANGLE ACTUAL 69.5° 69.5° 69.5° 69.5°
G. SEATTUBE LENGTH (MM) 385 435 485 535
H. TOPTUBE ACTUAL (MM) 545 565.2 585.2 609.1
I. TOPTUBE EFFECTIVE (MM) 586.7 610 630 640
J. BOTTOM BRACKET HEIGHT (MM) 337 337 337 337
K. BOTTOM BRACKET DROP (MM) 18 18 18 18
L. CHAINSTAY (MM) 430 430 430 430
M. WHEELBASE (MM) 1128 1148.6 1164.1 1179.7
N. STANDOVER HEIGHT (MM) 668.7 697.5 741.8 783.4
O. FORK OFFSET (MM) 42 42 42 42
SEATPOST DIAMETER (MM) 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH (MM) 780 780 780 780
STEM LENGTH (MM) 45 45 45 45
CRANK LENGTH (MM) 170 175 175 175

Technology

Hawk Hill Frame Tech

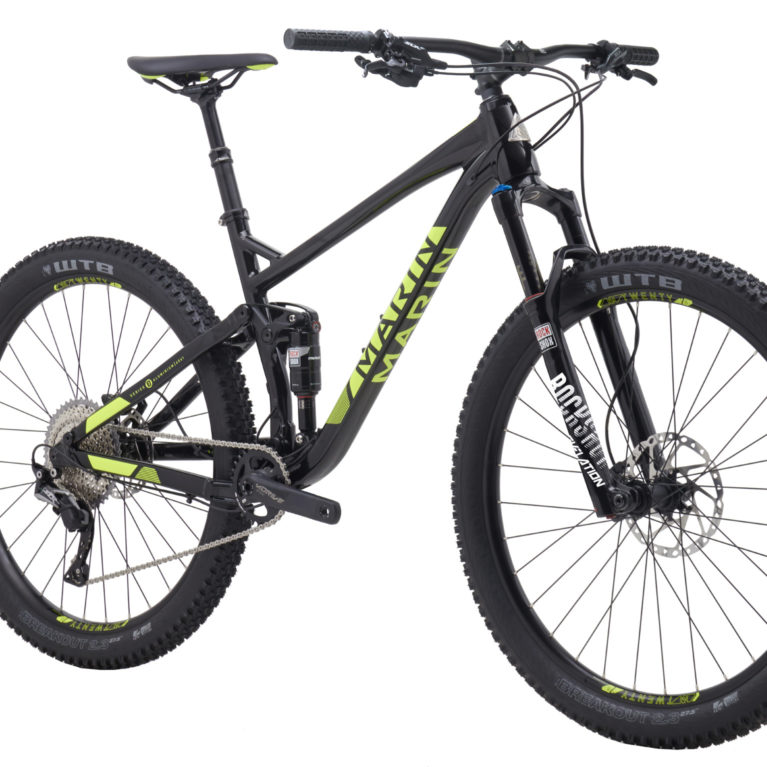

Series 3 Aluminum Frame

The Hawk Hill has a Series 3 6061 butted and hydroformed aluminum frame with 120mm travel MultiTrac suspension technology and playful 27.5” wheels.

Trail 27 5 Tech Icon

27.5” Wheels

27.5” wheels fit most riders better and create a lightweight and responsive bike, the most playful trail bike in the line.

Hawk Hill 2

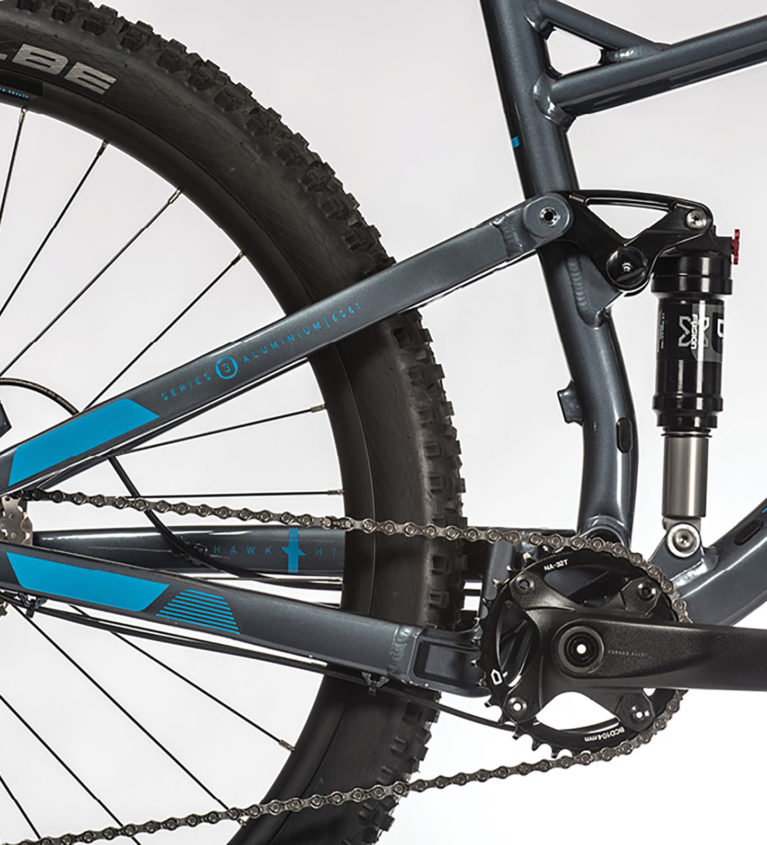

Multitrac Suspension Technology

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

Hawk Hill 3

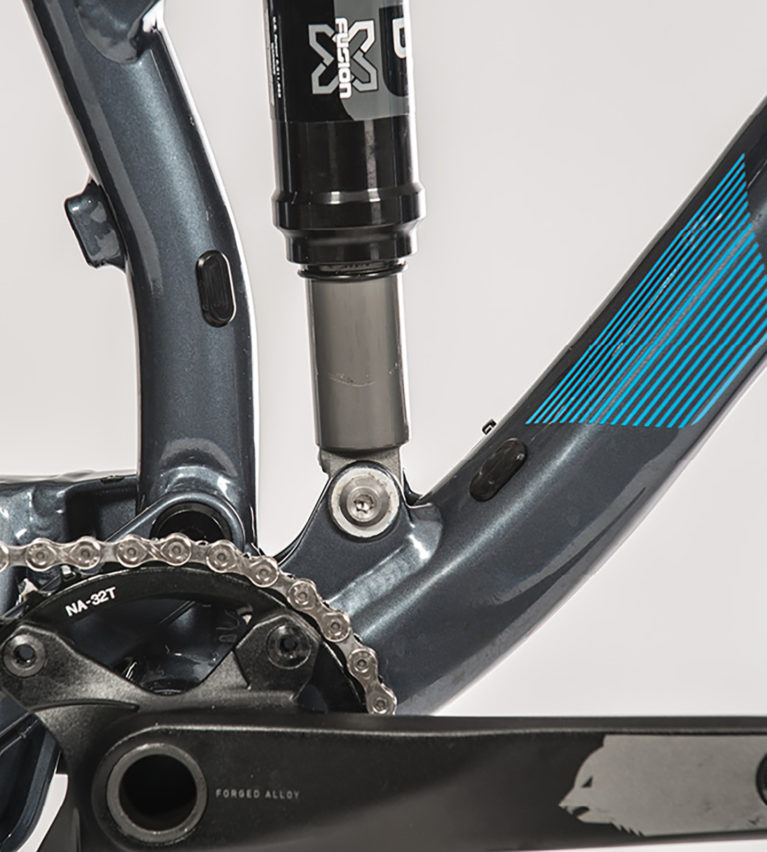

Internal Routing

Hawk Hill models are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.

Hawk Hill 4

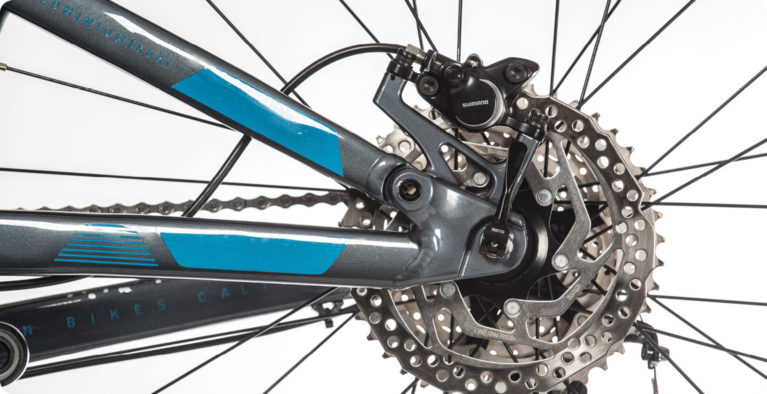

148x12mm Thru-Axle

Boost front spacing is paired with a 148x12mm Boost rear thru-axle for frame and wheel strength, and future wheel upgrade compatibility on the Hawk Hill 2 and 3.

Bike SetUp

MultiTrac is an acclaimed rear suspension
system, fine-tuned through years of riding
and testing to have a balanced ride capable
of absorbing big hits while having an efficient
pedaling platform. The rocker link provides a
progressive leverage ratio for the rear shock for
small bump sensitivity and the feeling of a long
travel system on large drops and rocks. Available
on our Rift Zone, B-17, and Hawk Hill families
of bikes.

HAWK HILL 2 ROCKSHOX MONARCH R DEBONAIR

Rider Weight SAG: 27-30% RANGE, ALL PSI ARE AT 30% SAG
LBS KG PSI
120 54 127
130 59 130
140 64 135
150 68 140
160 73 146
170 77 152
180 82 166
190 86 180
200 91 195
210 95 205
220 100 215
230 104 225
240 109 235
250 113 245
260 118 255
270 122 270
