Marin Pine Mountain

Marin Pine Mountain

Overview

MSRP • $2,999.99

Color • Gloss Chrome Metallic Purple

TRAIL RIDING


ALL-DAY EPICS


ADVENTURE


BIKEPACKING


The Pine Mountain is a classic steel hardtail with modern trail
capabilities for hardtail purists pushing the limits and seeking
adventure. Plus-sized tires are an instant confidence boost and
traction upgrade, sticking to most everything and making it
possible to navigate rough and slippery trails and obstacles with
new conviction.

Size Rider Height Range
S (27.5+")
5'4" to 5'7"
M (27.5+")
5'7" to 5'10"
L (27.5+")
5'10" to 6'0"
XL (27.5+")
6'0" to 6'2"
XXL (27.5+")
6'2" to 6'4"

Spec

Frame

Columbus Thron Butted and Formed CrMo, 27.5+ Wheels, Boost 148x12mm, Naild 12-3-9 Locking Quick Release Thru-Axle

Front Suspension

RockShox Pike RC 27.5+, 120mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

Rims

WTB i40 Scraper, 40mm Inner, TCS Technology, Tubeless Compatible

Hub Rear

Formula, 148x12mm, Alloy Axle, Quad Sealed Cartridge Bearings, Centerlock Disc, 32H

Hub Front

Formula, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc 32H

Spokes

14g Black Stainless Steel

Tires

WTB Ranger TCS Fast / Light, 27.5x2.8", Tubeless Compatible, Folding Bead

Derailleur Rear

Shimano Deore XT Shadow Plus 11-Speed

Derailleur Front

- - -

Shift Lever

Shimano Deore XT 1x11-Speed

Crankset

Shimano Deore XT Hollowtech II, 32T, Boost Spacing

Bottom Bracket

Shimano Hollowtech II

Chain

KMC X11L

Cassette

Shimano Deore XT 11-Speed, 11-46T

Brakes Front

Shimano XT Hydraulic Disc, 180mm Rotor

Brakes Rear

Shimano XT Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano XT Hydraulic

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 780mm Width, 4º Up, 9º Back

Stem

Marin 3D Forged Alloy, 60mm

Grips

Marin Locking

Headset

FSA Orbit CE, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

KS Lev Integra, Southpaw Lever, Size S 100mm Travel, All Other Sizes: 125mm Travel

Saddle

WTB Volt Race

Pedals

- - -

Extras

Naild Rear Locking Thru-Axle, 12.3.9 QR Mechanism, LocIt Lever Technology

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type S M L XL XXL
A. STACK (MM) 621.1 621.1 625.8 639.8 667.8
B. REACH (MM) 385.3 413.3 434.6 452.5 462.4
C. HEADTUBE ANGLE 69° 69° 69° 69° 69°
D. HEADTUBE LENGTH (MM) 110 110 115 130 160
E. SEATTUBE ANGLE VIRTUAL 73.5° 73.5° 73.5° 73.5° 73.5°
F. SEATTUBE ANGLE ACTUAL 70° 70° 70° 70° 70°
G. SEATTUBE LENGTH (MM) 390 440 482 525 570
H. TOPTUBE ACTUAL (MM) 539.6 561.5 586.1 608.4 631.6
I. TOPTUBE EFFECTIVE (MM) 570 598 621 644 664
J. BOTTOM BRACKET HEIGHT (MM) 311 311 311 311 311
K. BOTTOM BRACKET DROP (MM) 55 55 55 55 55
L. CHAINSTAY (MM) 437 437 437 437 437
M. WHEELBASE (MM) 1090.8 1118.8 1141.9 1165.2 1185.7
N. STANDOVER HEIGHT (MM) 706 748 778 819 860
O. FORK OFFSET (MM) 51 51 51 51 51
SEATPOST DIAMETER (MM) 30.9 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH (MM) 780 780 780 780 780
STEM LENGTH (MM) 60 60 60 60 60
CRANK LENGTH (MM) 170 175 175 175 175

Technology

Trail 27 5 Plus Tech Icon

27.5+ Wheels

27.5+ tires roll fast, grip anything, and their 2.8” wide high volume low pressure setup brings a new experience to trail riding.

Pine Mountain 1

STEEL IS REAL

The Pine Mountain uses a butted and formed 4130 CrMo frame with Boost compatible dropouts, full fender and rack mounts, and three bottle bosses. Step up to Columbus Thron tubing with the Pine Mountain 2.

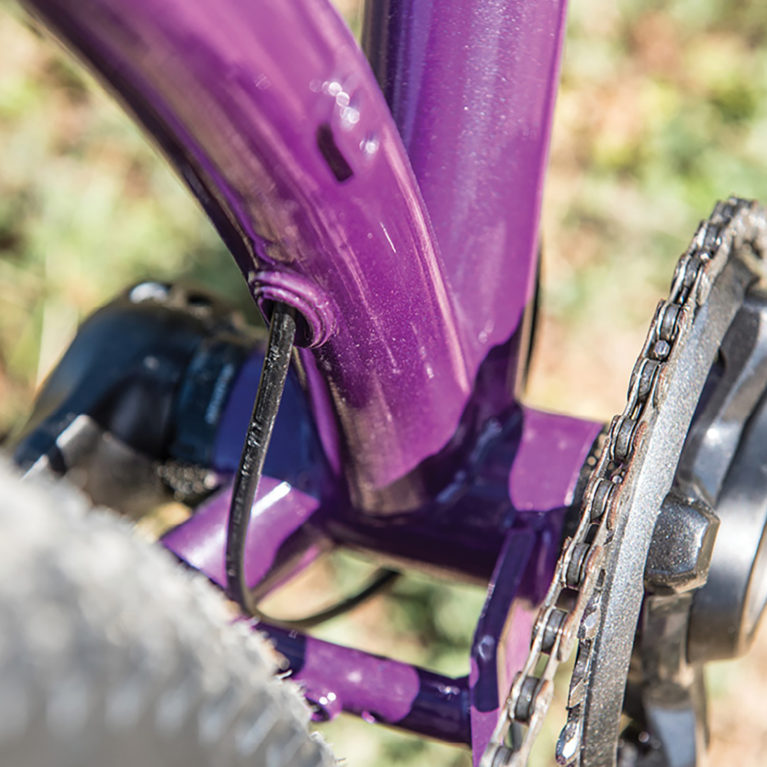

Pine Mountain 2

INTERNAL ROUTING

The Pine Mountain 2 features an internally routed dropper post, with internal rear derailleur and rear disc brake routing for a clean look and snag free ride.

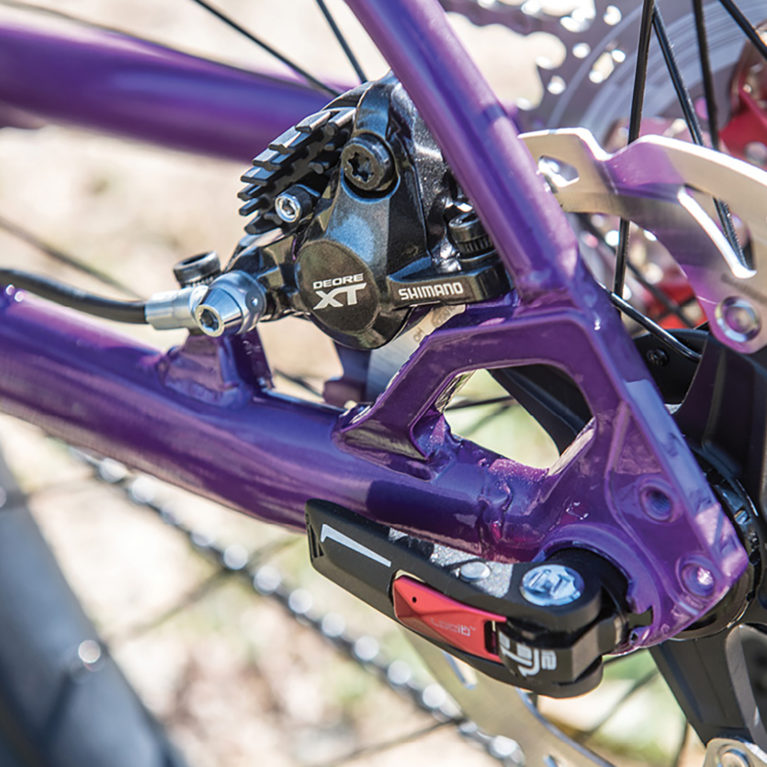

Pine Mountain 3

12-3-9 Naild Locking Thru-Axle

The 148x12mm 12-3-9 Naild locking quick release thru-axle on the Pine Mountain 2 is intuitive to use, with fast and secure engagement.

Pine Mountain 4

TRAIL GEOMETRY

The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 69 degree head angle makes for confident steering with or without the weight of gear.

Reviews

  • "The PINE MOUNTAIN family is definitely oriented and designed for adventure, and is perfectly suited to long treks over several days."

  • "In its latest form, it is a versatile machine. Whether pushed hard on singletrack after work, or loaded heavy for a multi-day tour, it seems to do it all."
