Marin Speed + Commute

Marin Speed + Commute

Overview

MSRP • $929.99

Color • Gloss Marina Blue

FITNESS ROAD RIDING


COMMUTING


CITY TRANSIT


The Fairfax and Terra Linda make up our Speed + Commute
line, built for the flat-bar fitness road rider with the accessory
mounts and gear range for the everyday commuter.

Size Rider Height Range
XS (Fairfax)
4'11" to 5'2"
S (Fairfax)
5'3" to 5'6"
M (Fairfax)
5'6" to 5'10"
L (Fairfax)
5'10" to 6'2"
XL (Fairfax)
6'2" to 6'4"
-----------------
---- to ----
S (Terra Linda)
4'11" to 5'2"
M (Terra Linda)
5'3" to 5'6"
L (Terra Linda)
5'6" to 5'10"

Spec

Frame

Series 3 Speed + Commute, 6061 Aluminum w/ SHOT Tech, 700C Wheels, Women's Fit Geometry, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts

Fork

Carbon w/ Alloy Steerer, Post-Mount Disc

Rims

Marin Aluminum Double Wall, 30mm Tall, Disc Specific

Hub Rear

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Hub Front

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Schwalbe Lugano 700Cx28, Kevlar Puncture Protection

Derailleur Rear

Shimano Sora, Long Cage, 9-Speed

Derailleur Front

Shimano Sora

Shift Lever

Shimano Sora 2x9-speed

Crankset

FSA Vero Pro, Extra-Wide Compact, 48/32T

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Chain

KMC X9

Cassette

Shimano HG200 9-Speed, 11-34T

Brakes Front

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

Brakes Rear

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

Brake Levers

Shimano BL-M315 Hydraulic

Handlebar

Marin Alloy Flat Top Riser

Stem

Marin 3D Forged Alloy

Grips

Marin Ergonomic Locking

Headset

FSA No.8B

Seatpost

Marin Alloy Light

Saddle

Marin Women's Fitness

Pedals

Commute Platform

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type S M L XL
A. STACK (MM) 557.89 576.97 596.04 615.11
B. REACH (MM) 384.74 394.09 403.44 411.94
C. HEADTUBE ANGLE 72.5° 72.5° 72.5° 72.5°
D. HEADTUBE LENGTH (MM) 135 155 175 195
E. SEATTUBE ANGLE VIRTUAL 73.5° 73.5° 73.5° 73°
F. SEATTUBE ANGLE ACTUAL 73.5° 73.5° 73.5° 73°
G. SEATTUBE LENGTH (MM) 381 431.8 482.6 520.7
H. TOPTUBE ACTUAL (MM) 531.9 543 556.8 575.4
I. TOPTUBE EFFECTIVE (MM) 550 565 580 600
J. BOTTOM BRACKET HEIGHT (MM) 280 280 280 280
K. BOTTOM BRACKET DROP (MM) 65 65 65 65
L. CHAINSTAY (MM) 432 432 432 432
M. WHEELBASE (MM) 1014.42 1029.78 1045.15 1059.66
N. STANDOVER HEIGHT (MM) 613.7 656.9 700.5 734.6
O. FORK OFFSET (MM) 45 45 45 45
SEATPOST DIAMETER (MM) 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (MM) 640 640 640 680
STEM LENGTH (MM) 70 70 90 90
CRANK LENGTH (MM) 170 170 175 175

Technology

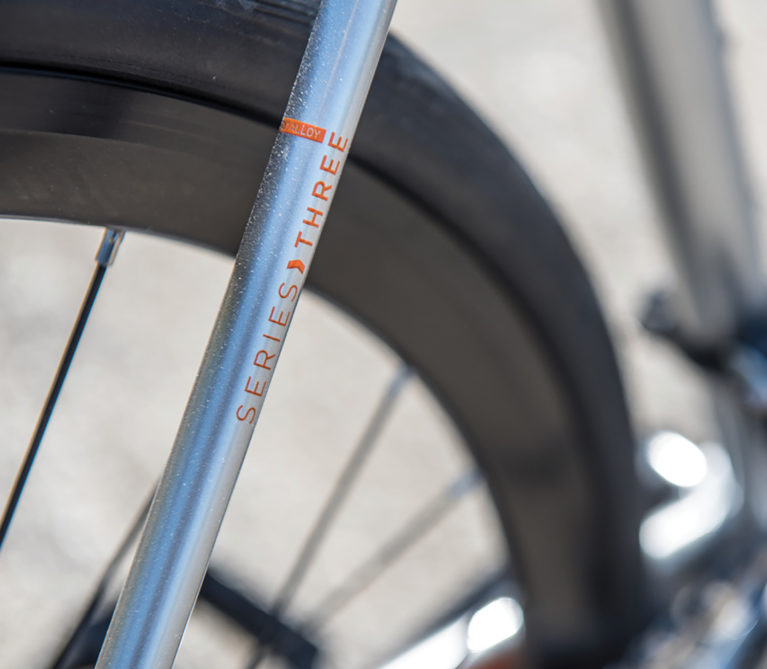

Fairfax Terra Linda 1

Series 3 FRAME

Series 3 Speed + Commute frames feature a butted and formed 6061 aluminum frame with internal cable routing, post mount disc brakes, and forged dropouts with rack and fender mounts and an integrated kickstand mount.

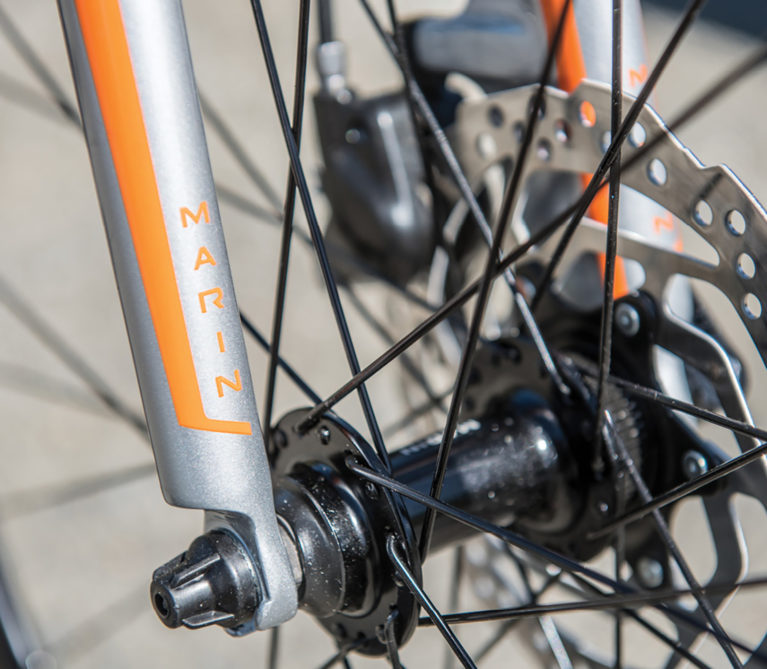

Fairfax Terra Linda 3

DISC BRAKES

Hydraulic disc brakes on the Fairfax SC6 DLX, SC4 Belt, SC4, SC3, and Terra Linda SC4 provide smooth, controlled stopping in all conditions with minimal maintenance.

Fairfax Terra Linda 4

WOMENS FIT GEOMETRY

The Terra Linda features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and short reach brake levers.

Racksfenders

Racks/Fenders

Easily outfitted with fenders for wet weather and racks for cargo carrying capacity.

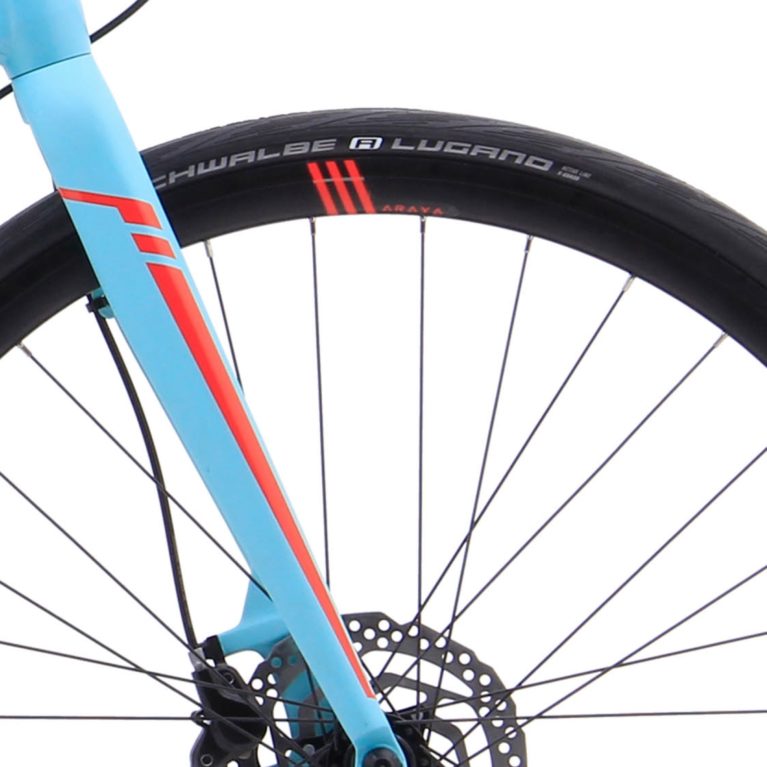

Terra Linda Tire Tech

Puncture-Resistant Tires

Puncture-resistant tires greatly reduce the risk of flat tires.
