Marin Cortina AX

Marin Cortina AX

Overview

MSRP • $2,649.99

Color • Satin Black/Dark Purple Fade

ENTRY LEVEL CYCLOCROSS RACING


GRAVEL RACING


SUPER COMMUTER


Buy the Cortina AX on Saturday, race it on Sunday. The
Cortina AX is a full-featured gravel or cyclocross race bike
that can help privateer off-road drop bar speed pursuits
reach their maximum potential.

Size Rider Height Range
49cm
5'0" to 5'3"
52cm
5'3" to 5'6"
54cm
5'6" to 5'9"
56cm
5'9" to 6'0"
58cm
6'0" to 6'2"
60cm
6'2" to 6'4"

Spec

Frame

Series 4 CX, 6061 Aluminum, 700C Wheels, Tapered Head Tube, Relieved BB, Internal Cable Routing, Post Mount Disc, 142x12mm Naild 12.3.9 Thru-Axle

Fork

Naild NavIt Carbon, Tapered Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin

Rims

Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible

Hub Rear

Forged Aluminum Alloy, 142x12mm, 6-Bolt Disc, 32H

Hub Front

Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H

Spokes

14g Black Stainless Steel

Tires

WTB, Riddler TCS Light, 700Cx37, Folding Bead, Tubeless Compatible

Derailleur Rear

SRAM Apex 1 11-Speed

Derailleur Front

- - -

Shift Lever

SRAM Apex 1 DoubleTap Hydraulic 1x11-Speed

Crankset

FSA Gossamer Pro, Megatooth 38T Chainring, BB386EVO Alloy Spindle

Bottom Bracket

FSA MegaExo Threaded

Chain

KMC X11

Cassette

SRAM XG-1150 11-Speed, 10-42T

Brakes Front

SRAM Apex Hydraulic Disc, 160mm Rotor

Brakes Rear

SRAM Apex Hydraulic Disc, 160mm Rotor

Brake Levers

SRAM Apex Hydraulic

Handlebar

Marin Butted Alloy, Compact 12º Flared Drop

Stem

Marin 3D Forged Alloy

Grips

Marin Microfiber Tape

Headset

FSA Orbit, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

Marin Carbon

Saddle

Marin Beyond Road Concept

Pedals

- - -

Extras

Naild Front Locking Thru-Axle, 12.3.9 QR Mechanism, LocIt Lever Technology

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type 49 52 54 56 58 60
A. STACK (MM) 528.1 550.7 563.7 584.6 598.8 622.7
B. REACH (MM) 378.5 381.9 383 386.8 391.9 399.6
C. HEADTUBE ANGLE 70.5 71.5 72 72.5 73 73
D. HEADTUBE LENGTH (MM) 105 125 140 160 175 200
E. SEATTUBE ANGLE VIRTUAL 75 74 73.5 73.5 73 72.5
F. SEATTUBE ANGLE ACTUAL 75 74 73.5 73.5 73 73
G. SEATTUBE LENGTH (MM) 490 520 540 560 580 600
H. TOPTUBE ACTUAL (MM) 510.6 527.2 537 546.2 560.7 574.6
I. TOPTUBE EFFECTIVE (MM) 520 540 550 560 575 590
J. BOTTOM BRACKET HEIGHT (MM) 278 278 278 278 278 278
K. BOTTOM BRACKET DROP (MM) 70 70 67 67 65 65
L. CHAINSTAY (MM) 425 425 425 425 425 425
M. WHEELBASE (MM) 1007.7 1009.6 1011.4 1016.9 1022 1037.2
N. STANDOVER HEIGHT (MM) 763.3 783.3 798.7 818.8 835 856.5
O. FORK OFFSET (MM) 45 45 45 45 45 45
SEATPOST DIAMETER (MM) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (MM) 400 400 420 420 440 440
STEM LENGTH (MM) 70 70 90 90 90 110
CRANK LENGTH (MM) 170 170 175 175 175 175

Technology

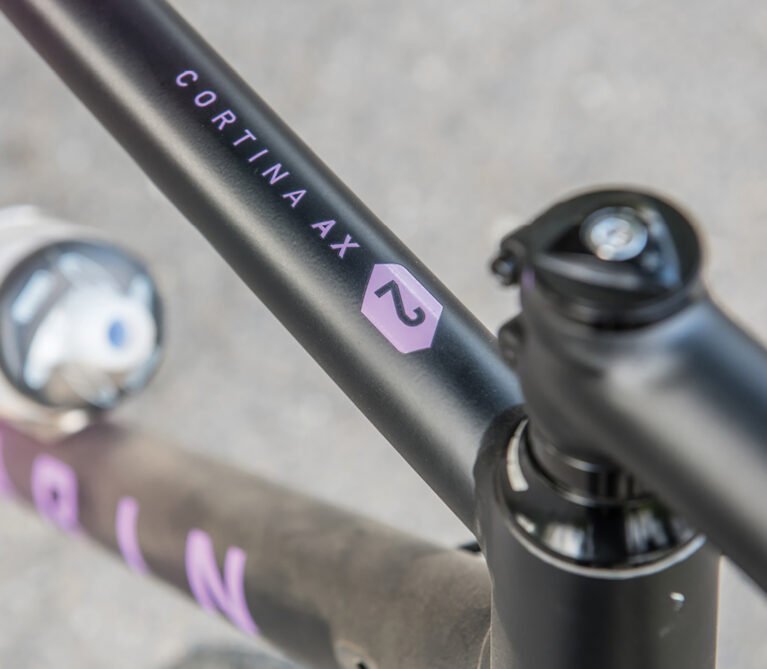

Cortina 1

Series 4 CX Frame

The Series 4 CX 6061 aluminum alloy frame and Naild NavIt carbon fork with tapered alloy steerer features a fully butted tubeset with a tapered headtube, chainstay disc brake mount, race-ready geometry and Naild 12.3.9 locking quick release thru-axles front and rear.

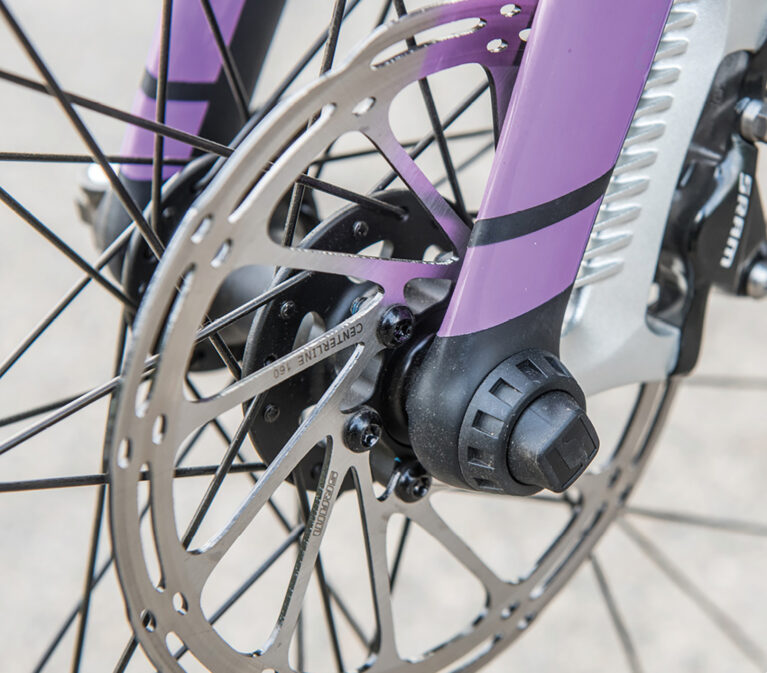

Cortina 2

Naild NavIt Carbon Fork

Naild NavIt Carbon Fork with tapered alloy steerer and thru-axle has precision steering control and damps trail vibration.

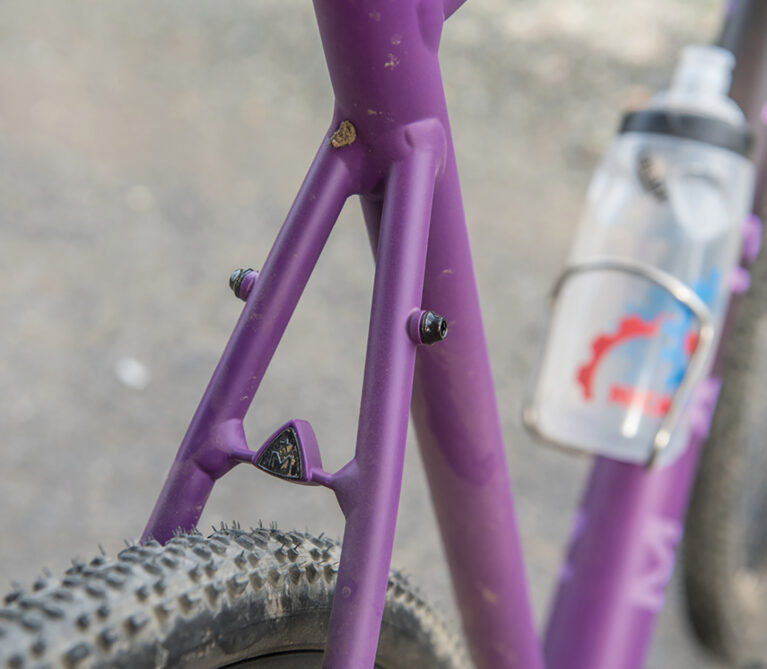

Cortina 3

TIRE CLEARANCE

The Cortina AX frame and fork has clearance for up to 700Cx45 tires.

Reviews

  • "The AX2 packs a lot into a package that’s only $2099."

  • "The butted Series 4 aluminum frame is matched with the NAILD Navit carbon fork with clearance for 45mm tires. Speced with a full SRAM Apex hydro 1x group, the Cortina would be a good choice for someone looking to split duties between short cross races and longer gravel adventures."

  • “Marin has done a masterful job of threading the geometry needle, giving the bike enough lively personality for cross, while preserving its ability to remain stable and planted in thick gravel.”

  • "If you haven't ridden a new bike in this price segment in a while, it'll likely surprise you if not for the value, but how well it handles."
