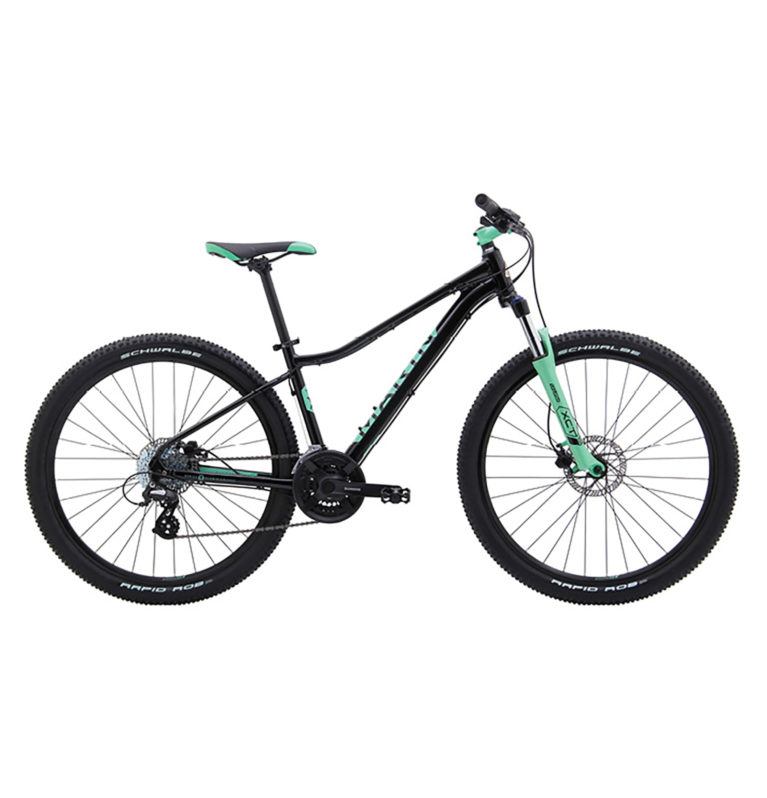

Marin Wildcat Trail

Marin Wildcat Trail

Overview

MSRP • $784.99

Color • Gloss Black

SINGLETRACK AND FIRE ROAD RIDING


TRAIL MOUNTAIN BIKING


The Wildcat Trail family crosses boundaries between Trail and
Sport mountain bikes, with the Wildcat Trail 5 and Wildcat Trail
3 designed for the female hardtail enthusiast looking for a full
featured trail mountain bike, and the Wildcat 1 positioned for the
recreational mountain bikers.

Size Rider Height Range
XS (27.5")
5'0" to 5'4"
S (27.5")
5'4" to 5'7"
M (27.5")
5'7" to 5'10"
L (27.5")
5'10" to 6'0"

Spec

Frame

Series 2 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts

Front Suspension

SR Suntour XCT HLO-DS 27.5”, 100mm Travel, Hydraulic Lockout, (80mm Size XS & S)

Rims

Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Hub Rear

Joytech, Centerlock Disc, 32H

Hub Front

Joytech, Centerlock Disc, 32H

Spokes

14g Black Stainless Steel

Tires

Rapid Ron, 27.5”x2.25”

Derailleur Rear

Shimano Altus, 8-Speed

Derailleur Front

FD-TY700

Shift Lever

Shimano SL-M310 3x8-Speed

Crankset

Shimano FC-TY301, 42/32/22T

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Chain

KMC Z8

Cassette

SunRace 8-Speed, 11-34T

Brakes Front

Tektro HDM-285 Hydraulic Disc, 180mm Rotor

Brakes Rear

Tektro HDM-285 Hydraulic Disc, 160mm Rotor

Brake Levers

Tektro HDM-285 Hydraulic Disc

Handlebar

Marin Mini-Riser, 10mm Rise, 720mm Width

Stem

Marin Alloy

Grips

Marin Dual Density

Headset

FSA No.10-P

Seatpost

Marin Alloy

Saddle

Marin MTB

Pedals

Nylon Platform

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type XS S M L
A. STACK (MM) 578.56 583.19 587.83 592.46
B. REACH (MM) 409.1 422.77 438.44 457.11
C. HEADTUBE ANGLE 68° 68° 68° 68°
D. HEADTUBE LENGTH (MM) 100 105 110 115
E. SEATTUBE ANGLE VIRTUAL 74° 74° 74° 74°
F. SEATTUBE ANGLE ACTUAL 74° 74° 74° 74°
G. SEATTUBE LENGTH (MM) 330 381 431 482
H. TOPTUBE ACTUAL (MM) 564.23 570.64 583.64 603.94
I. TOPTUBE EFFECTIVE (MM) 575 590 607 627
J. BOTTOM BRACKET HEIGHT (MM) 304.5 304.5 304.5 304.5
K. BOTTOM BRACKET DROP (MM) 48 48 48 48
L. CHAINSTAY (MM) 430 430 430 430
M. WHEELBASE (MM) 1098.23 1113.77 1131.32 1151.86
N. STANDOVER HEIGHT (MM) 615.18 652.37 693.94 735.23
O. FORK OFFSET (MM) 44 44 44 44
SEATPOST DIAMETER (MM) 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (MM) 720 720 720 720
STEM LENGTH (MM) 60 60 60 60
CRANK LENGTH (MM) 170 170 175 175

Technology

Wildcat Trail 4

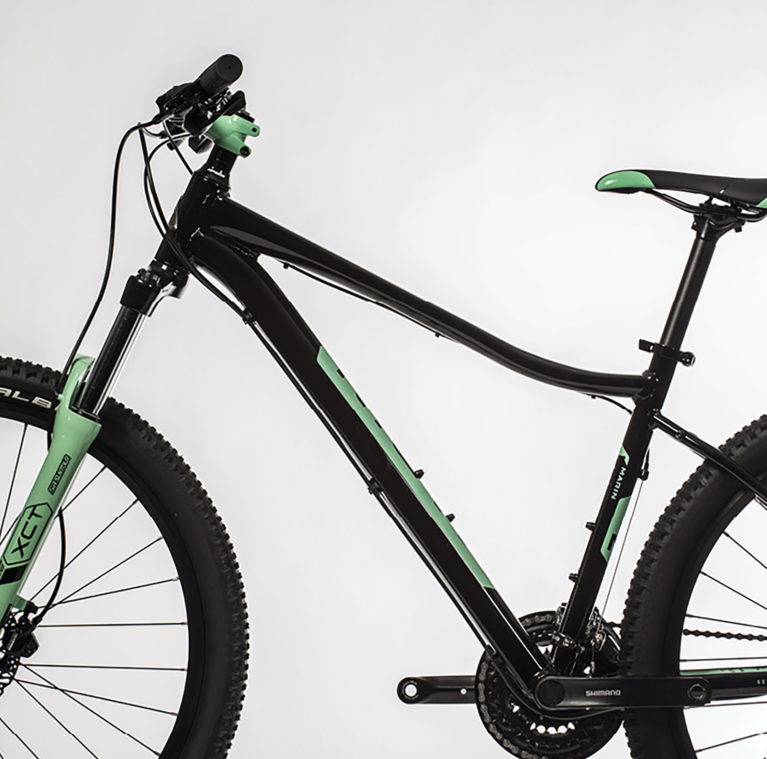

Series 2 Aluminum Frame

The Wildcat Trail 5 and Wildcat Trail 3 have a Series 2 6061 butted and hydroformed aluminum frame with a 100mm travel (80mm size XS and S) suspension fork.

Trail 27 5 Tech Icon

27.5” wheels

27.5” wheels fit most riders better and create a lightweight and responsive bike.

Wildcat Trail 2

Women’s Fit Geometry

The Wildcat Trail features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and adjustable reach brake levers.

Wildcat Trail 3

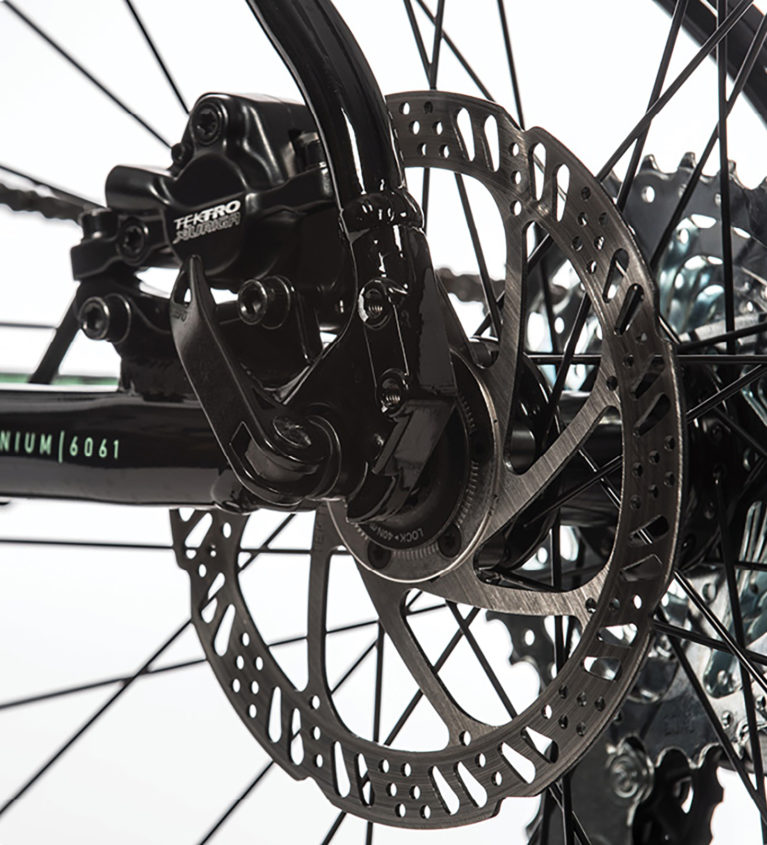

Disc brakes

Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
