Marin Wildcat Trail

Marin Wildcat Trail

Overview

MSRP • $989.99

Color • Gloss Blue

WILDCAT TRAIL 5 AND 3

SINGLETRACK AND FIRE ROAD RIDING TRAIL MOUNTAIN BIKING

The Wildcat Trail family crosses boundaries between Trail and Sport mountain bikes, with the Wildcat Trail 5 and Wildcat Trail 3 designed for the female hardtail enthusiast looking for a full featured trail mountain bike, and the Wildcat 1 positioned for the recreational mountain bikers.

Size Rider Height Range
XS
152cm to 163cm
S
163cm to 170cm
M
170cm to 178cm
L
178cm to 183cm

Spec

FRAME

Series 2 6061 Aluminum, Women’s SpecificFrame, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts

FORK

RockShox TK Silver 27.5”, Coil Spring, 100mm Travel

RIMS

Marin Aluminum Double Wall, 29mm Inner,Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR

Forged Alloy, Centerlock Disc, 32H

HUB FRONT

Forged Alloy, Centerlock Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire, Crown Gem 27.5x2.3", Dual Control Compound, Wire Bead

DERAILLEUR REAR

Shimano Deore Shadow Plus SGS 10-Speed

DERAILLEUR FRONT

---

SHIFT LEVER

Shimano Deore 1x10-Speed

CRANKSET

Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD

BOTTOM BRACKET

External Sealed Cartridge Bearings

CHAIN

KMC X10

CASSETTE

SunRace 10-Speed, 11-46T

BRAKES FRONT

Shimano BR-MT201 Hydraulic Disc 180mm Rotor

BRAKES REAR

Shimano BR-MT201 Hydraulic Disc 160mm Rotor

BRAKE LEVERS

Shimano BL-MT201

HANDLEBAR

Marin Riser, 12mm Rise, 780mm Width

STEM

Marin Alloy, 45mm

GRIPS

Marin Dual Density

HEADSET

FSA No.10-P

SEATPOST

Marin Alloy

SADDLE

Marin MTB

PEDALS

Nylon Platform

EXTRAS

---

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type XS XS S S M M L L
x (WC 1) (WC3&5) (WC 1) (WC3&5) (WC 1) (WC3&5) (WC 1) (WC3&5)
STACK (A) 583.04 578.56 587.71 583.19 592.38 587.83 597.05 592.46
REACH (B) 396.75 409.1 410.32 422.77 425.89 438.44 444.46 457.11
HEADTUBE ANGLE (C) 69° 68° 69° 68° 69° 68° 69° 68°
HEADTUBE LENGTH (D) 100 100 105 105 110 110 115 115
SEATTUBE ANGLE (VIRTUAL) (E) 73° 74° 73° 74° 73° 74° 73° 74°
SEATTUBE ANGLE (ACTUAL) (F) 73° 74° 73° 74° 73° 74° 73° 74°
SEATTUBE LENGTH (G) 330 330 381 381 431 431 482 482
TOPTUBE (ACTUAL) (H) 561.08 564.23 567.51 570.64 580.58 583.64 601 603.94
TOPTUBE (EFFECTIVE) (I) 575 575 590 590 607 607 627 627
BOTOM BRACKET HEIGHT (J) 304.5 304.5 304.5 304.5 304.5 304.5 304.5 304.5
BOTTOM BRACKET DROP (K) 48 48 48 48 48 48 48 48
CHAINSTAY (L) 430 430 430 430 430 430 430 430
WHEELBASE (M) 1076.57 1098.23 1091.94 1113.77 1109.3 1131.32 1129.67 1151.86
STANDOVER HEIGHT (N) 616.34 615.18 656.17 652.34 698.04 693.94 739.48 735.23
FORK OFFSET (O) 44 44 44 44 44 44 44 44
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 680 780 680 780 680 780 680 780
STEM LENGTH 70 45 70 45 70 45 70 45
CRANK LENGTH 170 170 170 170 175 175 175 175

Technology

Tech 1 Wildcat

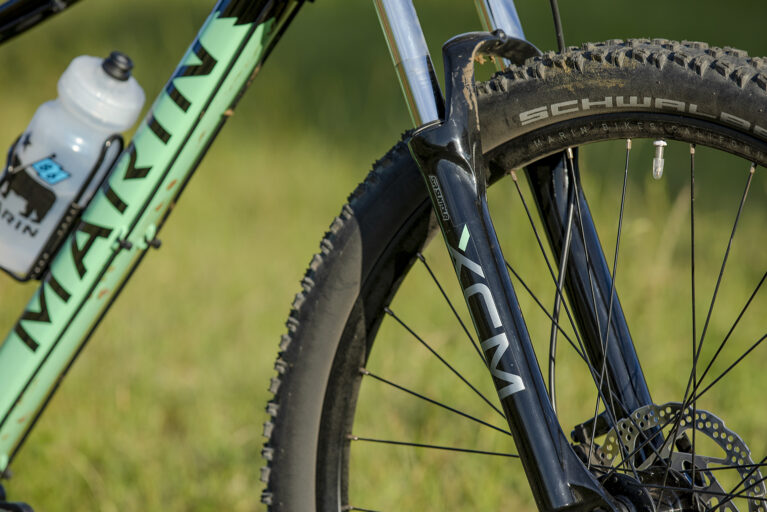

27.5” WHEELS

27.5” wheels fit most riders better and create a lightweight and responsive bike.

Tech 2 Wildcat

WOMEN’S FIT GEOMETRY

The Wildcat Trail features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and adjustable reach.

Tech 3 Wildcat

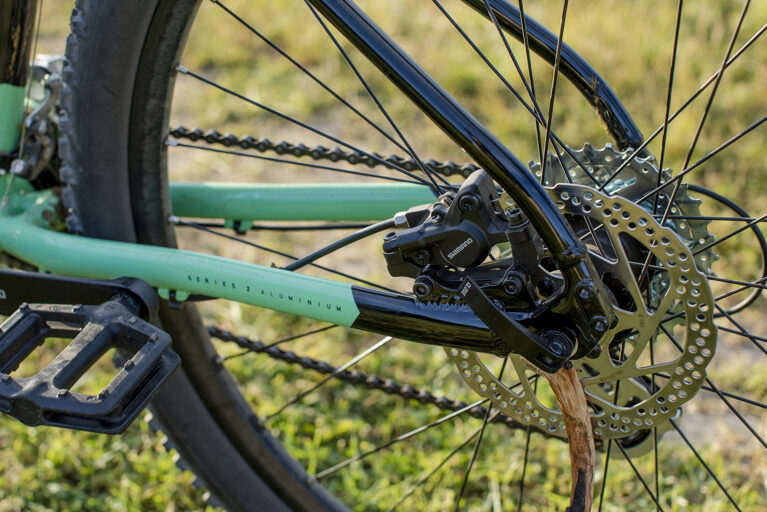

DISC BRAKES

Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance brake levers.

Tech 4 Wc 3 And 5 Wildcat

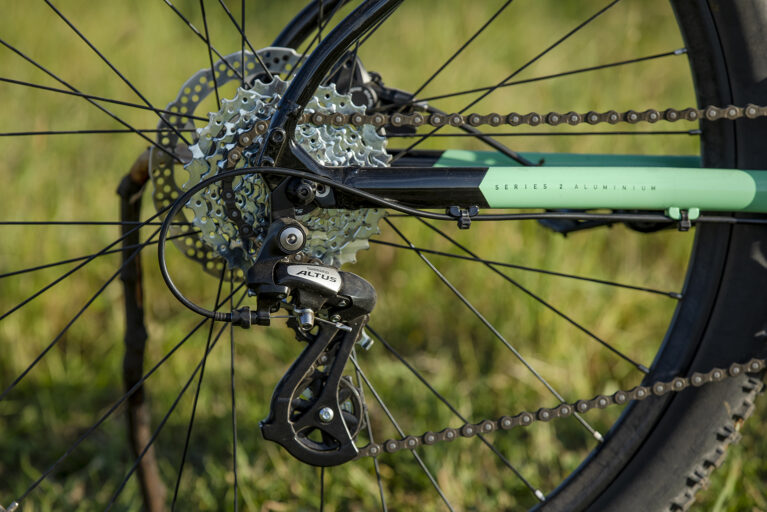

SERIES 2 ALUMINUM FRAME

The Wildcat Trail 3 and Wildcat Trail 5 have a Series 2 6061 butted and hydroformed aluminum frame with a 100mm travel (80mm size XS and S) suspension fork and 27.5” wheels.
