Overview

MSRP • $1899.99

Color • Gloss Tan

Developed in conjunction with freeride legend Matt Jones and taking its name from the most rough and tumble piece of Marin County, the all-new San Quentin collection lives up to the notoriety of the namesake maximum security California State Prison. Blending the strength and style of our Alcatraz dirt jump frame with the natural trail savvy of the Nail Trail hardtail, the San Quentin family of aggressive trail hardtails is the perfect mash-up for the modern trail rider.

Size Rider Height Range
S
163cm to 170cm
M
170cm to 178cm
L
178cm to 183cm
XL
183cm to 188cm

Spec

FRAME

Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter & Dropper Post Routing, External Brake, 12x148mm Thru Axle, 73mm Threaded BB

FORK

RockShox Revelation RC, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru Axle

RIMS

Marin Aluminum Double Wall, Disc Speci c, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

HUB REAR

Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, 12x148mm, Centerlock Disc, 32H, Shimano Standard Freehub Body.

HUB FRONT

Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Centerlock Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Flow Snap, 27.5x2.6”, Tackee Compound, Folding Bead, Tubeless Compatible

DERAILLEUR REAR

Shimano RD-M7000, SLX GS, Direct Mount, 11-Speed

DERAILLEUR FRONT

---

SHIFT LEVER

Shimano SL-7000R 11-Speed

CRANKSET

FSA Comet, Direct Mount 32T Ring, 2-piece Design

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 EL

CASSETTE

SunRace, 11-Speed, 11-46T

BRAKES FRONT

Shimano BR-MT400 Hydraulic Disc ,180mm Centerlock Rotor

BRAKES REAR

Shimano BR-MT400 Hydraulic Disc, 180mm Centerlock Rotor

BRAKE LEVERS

Shimano BL-MT400 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted, 28mm Rise, 780mm width, 4° up, 9° back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Single Clamp Locking

HEADSET

FSA No 57E, 11/8"x11/2”

SEATPOST

X-Fusion Manic, 1x Plastic Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel

SADDLE

Marin MTB

PEDALS

Marin MTB

EXTRAS

Marin Custom Guide, Alloy Back Plate, Top Guide Only, ISCG 05 Mounts

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type S M L XL
STACK (A) 586.1 590.7 599.7 604.3
REACH (B) 422 444 464 484
HEADTUBE ANGLE (C) 65 65 65 65
HEADTUBE LENGTH (D) 105 110 120 125
SEATTUBE ANGLE (VIRTUAL) (E) 75 75 75 75
SEATTUBE ANGLE (ACTUAL) (F) 75 75 75 75
SEATTUBE LENGTH (G) 385 430 475 515
TOPTUBE (ACTUAL) (H) 564 582 604 626
TOPTUBE (EFFECTIVE) (I) 579.1 602.3 624.7 645.9
BOTTOM BRACKET HEIGHT (J) 310 310 310 310
BOTTOM BRACKET DROP (K) 50 50 50 50
CHAINSTAY (L) 425 425 425 425
WHEELBASE (M) 1144.8 1168.9 1193.1 1215.3
STANDOVER HEIGHT (N) 664 677 714 745
FORK OFFSET (O) 46 46 46 46
SEATPOST DIAMETER 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780
STEM LENGTH 45 45 45 45
CRANK LENGTH 170 175 175 175

Technology

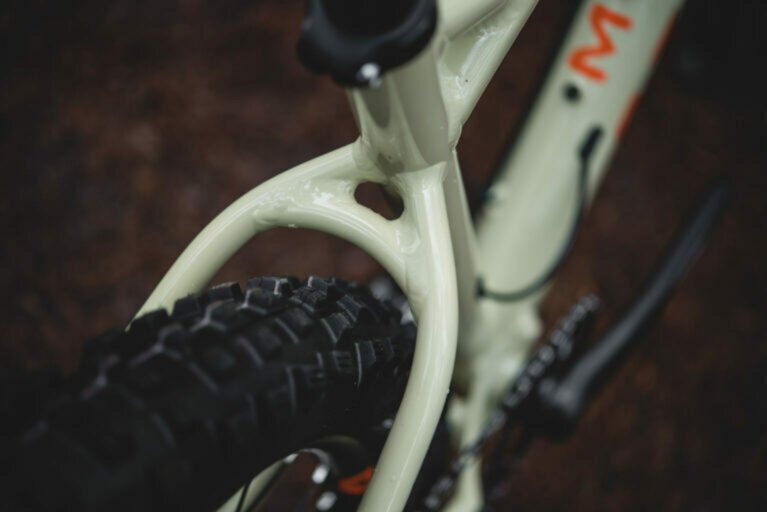

New Dsc0556 180601 163246

SERIES 3 AND 2 ALUMINUM

The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. The San Quentin 2 and 3 feature Series 3 aluminum frames, with more advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle

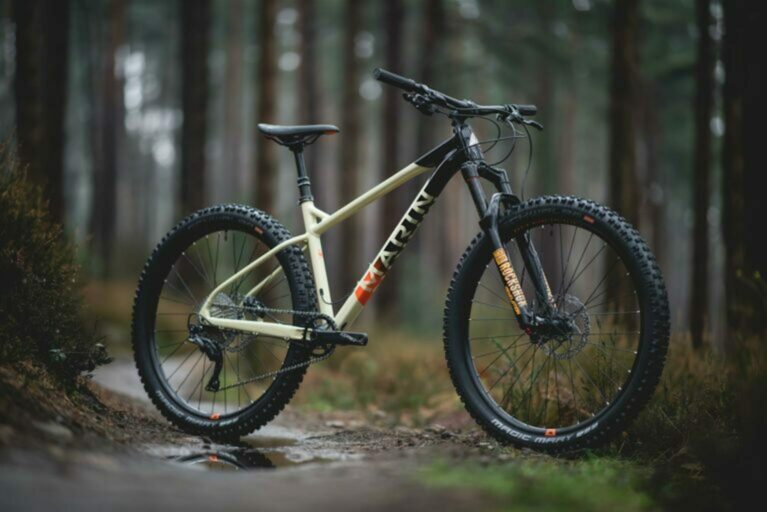

New Sq3 5 1

DIRT JUMP INSPIRED FRAME STYLE

Taking cues from the Alcatraz, the San Quentin line up provides all the bene ts of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.

New Dsc0718

MODERN TRAIL GEOMETRY

The slack head tube angle paired with a steep seat tube angle create a ride that will y uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on ats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

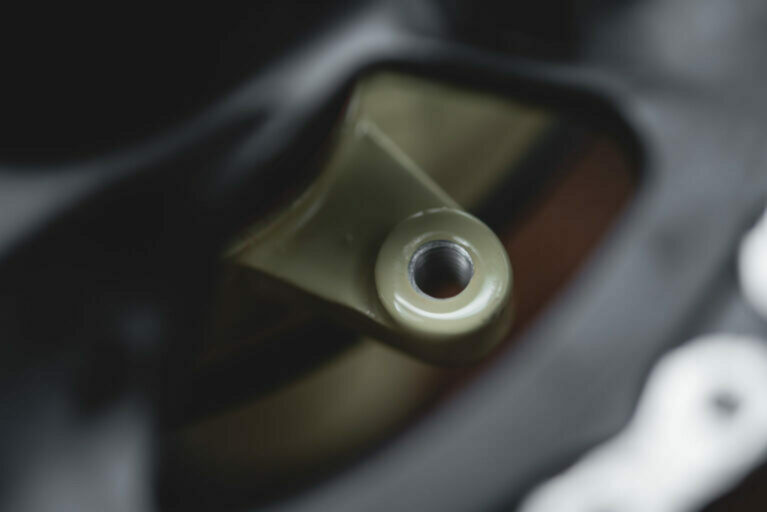

New Dsc0595

ISCG TABS

All San Quentin models feature ISCG 05 tabs for chain retention when the terrain gets super nasty.
