Attack Trail C-XT9

This model is from a previous generation and may not be available.

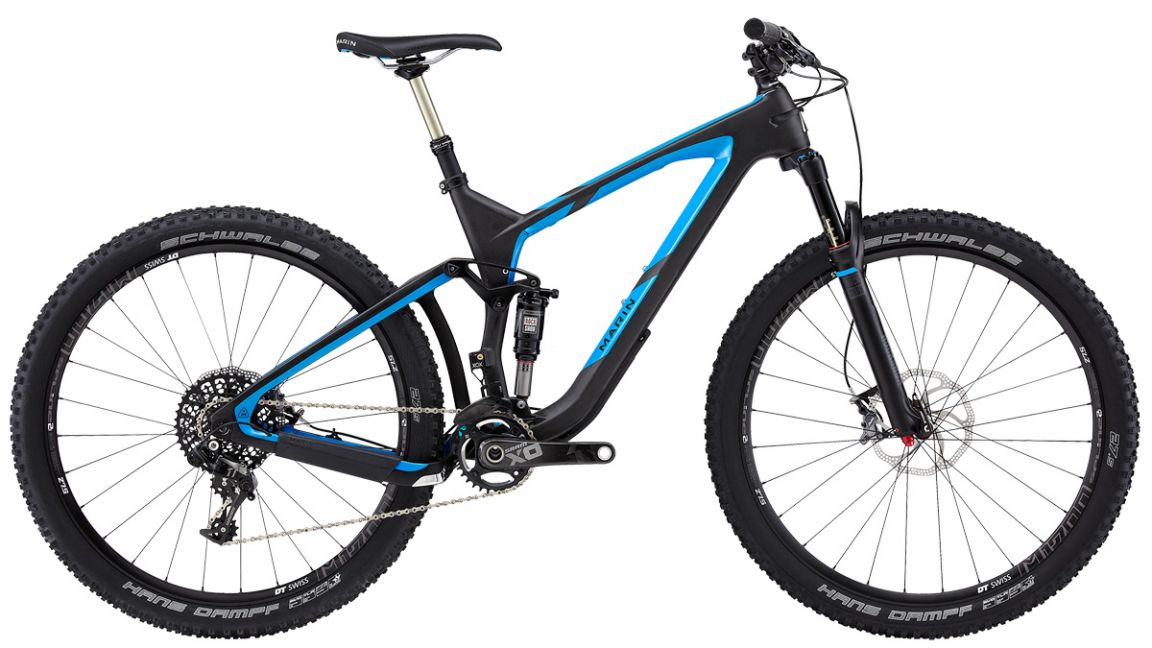

Attack Trail C-XT9

Photos:

Videos:

  • 2015 ATTACK TRAIL OVERVIEW

Bike Description

A purpose built Enduro machine… The Attack Trail C-XT9 gets a full carbon QUAD-Link 3.0, 150mm travel frame, SRAM X01 11-speed drivetrain, Rock Shox Pike RC travel adjust fork (130mm to 160mm), and a custom tuned Monarch RC3 rear shock. DT Swiss M1700 wheels and Schwalbe Hans Dampf TrailStar Tubeless tires. KS LEV Integra with Southpaw Lever, internally routed dropper post and Easton Haven bar and stem round out the cockpit, while Sram's Guide RS brakes keep you in control.

Bike Features

Attack Trail Custom Tuned Rear Shock

Attack Trail Custom Tuned Rear Shock

Custom Tuned Rear Shock & enduro-ready Quad 3 suspension platform

Attack Trail Downtube Protector

Attack Trail Downtube Protector

Custom designed replaceable Downtube Protector with cable ports for semi-internal routing

Attack Trail E-Thru Axle System

Attack Trail E-Thru Axle System

Chainstay mounted disc-brakes & Shimano E-Thru Axle System

4 in 1 Internalcable Routing

4 in 1 Internalcable Routing

4 in 1 internal cable routing

AT Quad 3 Suspension Platform

AT Quad 3 Suspension Platform

QUAD 3 multi-link suspension technology uses a floating pivot center to isolate pedaling and braking forces and provide plush, Enduro-winning suspension control.

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Attack Trail Carbon Monocoque Main Frame & Swing Arm, 150mm Travel QUAD 3 Suspension System, 27.5” wheels, Tapered Headtube, 142
Suspension/Fork Specs
Front Fork: Rock Shox Pike RC, Dual Position Air Spring, 130-160mm Travel
Rear Suspension: Rock Shox Monarch RC3
Drivetrain Specs
Engine:
Crankset: SRAM X01 Carbon, 32T
Derailleur Rear: SRAM X01 Carbon Type 2, 11 Speed
Shift Lever: SRAM X01 Trigger Shifter, 11-Speed
Derailleur Front:
Cassette: SRAM XG-1180, 10-42, 11-Speed
Bottom Bracket: SRAM GXP
Chain: SRAM PCX1, Black
Wheels Specs
Hub Rear: DT Swiss with Star Ratchet System
Hub Front: DT Swiss
Rim: DT Swiss M1700 Spline, 27.5”, 22.
Spokes Nipples: DT Swiss
Tires: Schwalbe Hans Dampf Evolution, Tubeless Ready with Snakeskin Sidewall Protection, 27.5 x 2.35
Brake Specs
Brakes Front: SRAM Guide RS Hydraulic Disc, 7” Rotor
Brakes Rear: SRAM Guide RS Hydraulic Disc, 6” Rotor
Brake Levers: Avid Hydraulic
Cockpit
Handlebar: Easton Haven 35, 20mm Rise, 750mm Wide
Grips: Marin Micro-Knurl Double Locking
Stem: Easton Haven, 0 Degree
Headset: FSA Orbit 1.5 ZS, 1 1/8” Top, 1.5” Bottom
Seatpost: KS LEV Integra, 125mm Drop, Internally Routed Remote with Southpaw Lever
Saddle: WTB VOLT Race
Accessories
Pedals:
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes S M L XL
Wheel Size
Stack 596.29 605.6 614.79 633.29
Reach 400.1 412.5 424.8 434.5
Head Tube Angle 66.5 66.5 66.5 66.5
Stem Length (mm)
Head Tube Length (mm) 95 105 115 135
Seat Tube Angle 65.5 65.5 65.5 65.6
Seat Tube Angle Virtual 73.5 73.5 73.5 73.5
Seat Tube Actual 405 445 480 520
Crank Length (mm)
Top Tube Actual (mm) 511.8 524.9 541.6 554.8
Top Tube Effective (mm) 576.4 591.4 606.4 622.1
BB Height 335.5 335.5 335.5 335.5
BB Drop 14.5 14.5 14.5 14.5
Fork Offset 44 44 44 44
Stand Over Height 698.48 730.58 759.79 779.17
Wheel Base 1135.4 1151.7 1167.9 1185.5
Chain Stay (mm) 435 435 435 435
Seat Post (mm) 30.9 30.9 30.9 30.9
