Attack Trail Pro

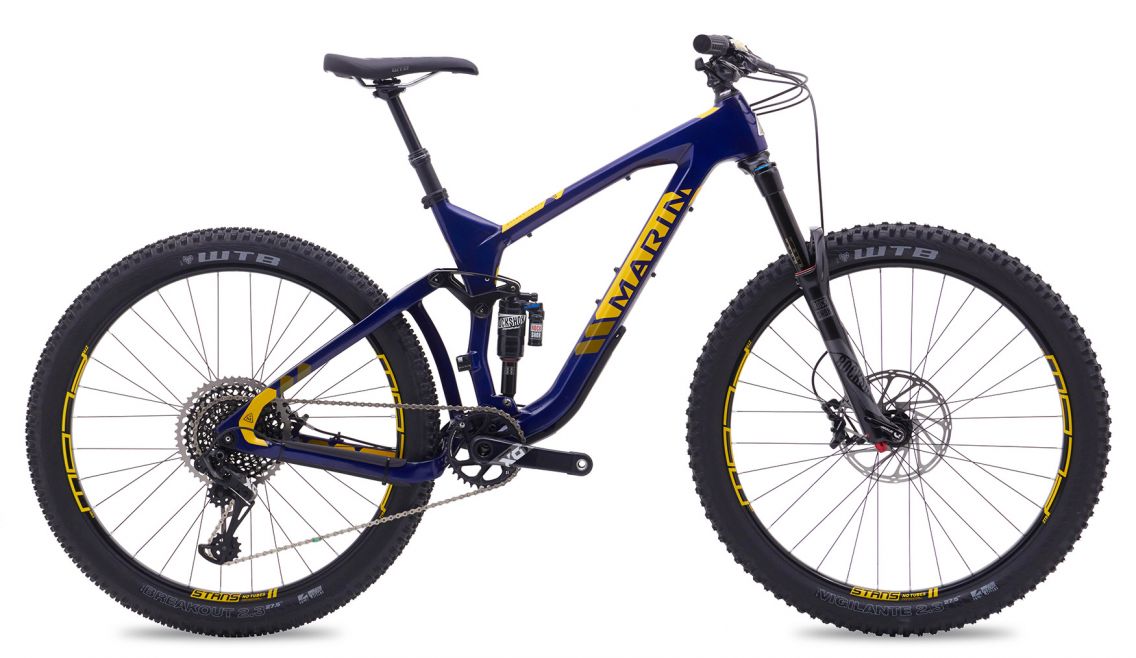

Attack Trail Pro Gloss Blue w/ Yellow

Photos:

Videos:

  • 2017 Marin Enduro/All-Mountain

Bike Description

Our flagship Enduro racer, the full-carbon Attack Trail Pro Carbon is built around our QUAD-Link 3.0 frame with 150mm rear travel, a full SRAM X01 Eagle 12-speed drivetrain, RockShox Pike RCT3 fork with 160mm travel, and a custom tuned RockShox Monarch Plus Debonair rear shock with rebound and compression adjustment. Stan's NoTubes Flow Mk3 Pro, tubeless-ready rims are wrapped in WTB Vigilante & Breakout 2.3" tires. KS LEV Integra dropper post with internal routing, Deity DC31 Mohawk carbon bar and Gamut Cillos stem round out the cockpit, while SRAM's Guide RS disc brakes with Centerline rotors offer sublime braking performance.

Bike Reviews

Bike Features

AT Monocoque Carbon

AT Monocoque Carbon

Monocoque carbon frame features 27.5” wheels with 150mm travel QUAD 3 suspension technology and carbon or aluminum swingarm.

AT Quad 3 Suspension Platform

AT Quad 3 Suspension Platform

QUAD 3 multi-link suspension technology uses a floating pivot center to isolate pedaling and braking forces and provide plush, Enduro-winning suspension control.

AT Trail Geometry

AT Trail Geometry

Trail geometry consists of a low BB, slack head angle, and longer reach for max trail shredding.

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Carbon Frame and Swingarm, 27.5” Wheels, 150mm Travel QUAD 3 Suspension Platform, Chainstay Mounted Post Mount, 142x12mm Thru-Axle
Suspension/Fork Specs
Front Fork: RockShox Pike RCT3 27.5”, 160mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 100x15mm Maxle Ultimate
Rear Suspension: RockShox Monarch Plus Debonair, 200x57mm, Rebound and Compression Adjustment
Drivetrain Specs
Engine:
Crankset: SRAM X01 Carbon, Direct Mount 34T Eagle Chainring
Derailleur Rear: SRAM X01 Eagle
Shift Lever: SRAM X01 Eagle 1x12 Speed
Derailleur Front: -
Cassette: SRAM XG 1295 12-Speed, X01 Eagle, 10-50T
Bottom Bracket: SRAM GXP BSA
Chain: SRAM X01 Eagle 12-Speed
Wheels Specs
Hub Rear: Stan's NoTubes Flow MRK3 Pro Wheelset, 142x12mm, 6-Bolt
Hub Front: Stan's NoTubes Flow MRK3 Pro Wheelset, 100x15mm, 6-Bolt
Rim: Stan's NoTubes Flow MRK3 Pro Wheelset, 30mm inner
Spokes Nipples: Stan's NoTubes Flow MRK3 Pro Wheelset
Tires: F: WTB Vigilante, 27.5”x2.3” R: WTB Breakout, 27.5”x2.3”, Folding Bead, Tubeless Compatible
Brake Specs
Brakes Front: SRAM Guide RS Hydraulic Disc, 200mm Rotors
Brakes Rear: SRAM Guide RS Hydraulic Disc, 180mm Rotors
Brake Levers: SRAM Guide RS
Cockpit
Handlebar: Deity DC31 Mohawk Carbon
Grips: Marin Locking
Stem: Gamut Cillos 3D Forged Alloy
Headset: FSA Orbit, Sealed Cartridge Bearings, 1 1/8
Seatpost: KS LEV Integra Dropper Post, Southpaw Remote
Saddle: WTB Volt Race
Accessories
Pedals: -
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes S M L XL
Wheel Size
Stack 596.29 605.6 614.79 633.29
Reach 400.1 412.5 424.8 434.5
Head Tube Angle 66.5 66.5 66.5 66.5
Stem Length (mm) 40 40 40 40
Head Tube Length (mm) 95 105 115 135
Seat Tube Angle 65.5 65.5 65.5 65.6
Seat Tube Angle Virtual
Seat Tube Actual 405 445 480 520
Crank Length (mm) 170 170 170 170
Top Tube Actual (mm) 511.8 524.9 541.6 554.8
Top Tube Effective (mm) 576.4 591.4 606.4 622.1
BB Height 335.5 335.5 335.5 335.5
BB Drop 14.5 14.5 14.5 14.5
Fork Offset 44 44 44 44
Stand Over Height 698.48 730.58 759.79 779.17
Wheel Base 1135.4 1151.7 1167.9 1185.5
Chain Stay (mm) 435 435 435 435
Seat Post (mm) 30.9 30.9 30.9 30.9
