Muirwoods

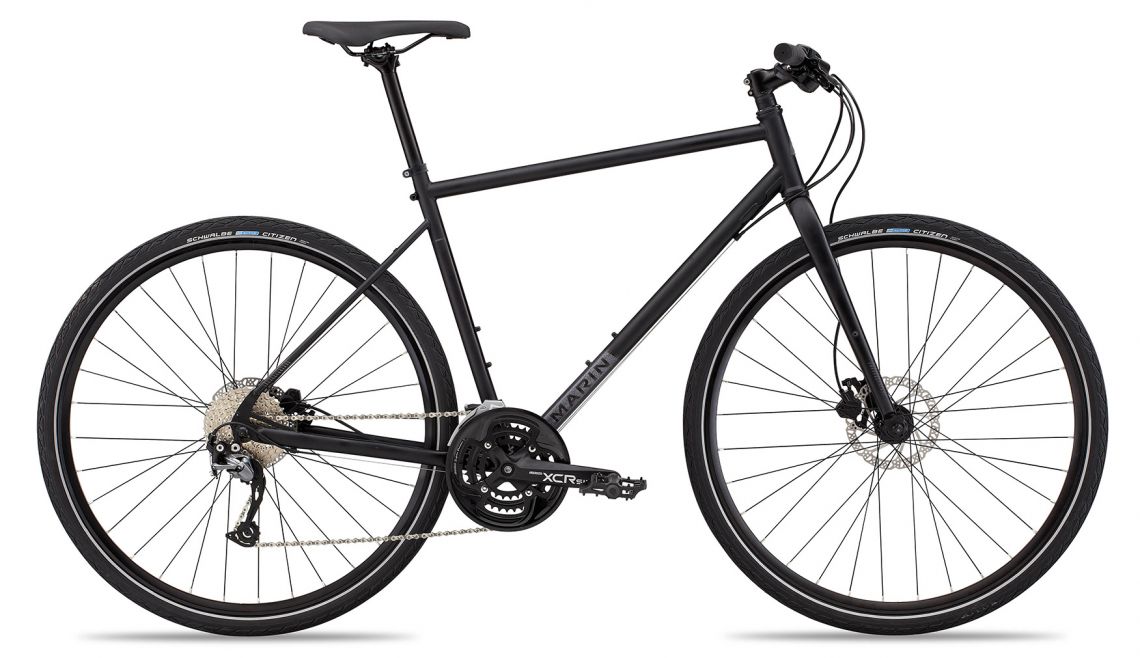

Muirwoods Satin Black w/ Black Reflective

Photos:

Videos:

  • 2017 Marin Urban

Bike Description

The Muirwoods 29er is our rough and tumble commute machine. Offering the toughness of a mountain bike-based chromoly frame and fork with an updated geometry and durable component selection, this bike is designed for riders wanting some fun on their commute. From jumping curbs and train tracks to adventuring the dirt roads on the outskirts of town, the Muirwoods 29er can take it all. A 27-speed Shimano Altus and Alivio drivetrain provides the perfect gear regardless of terrain while Shimano hydraulic disc brakes provide dependable braking performance regardless of weather conditions. Night time visibility is taken into account with highly reflective 3M graphics on the frame and tires, while integrated rack and fender mounts allow you to build up the bike to best suit your needs.

Bike Reviews

Bike Features

Muirwoods Frame

Muirwoods Frame

Butted 4130 CrMo frame with the heart and soul of a mountain bike tuned to the urban environment.

Muirwoods 29” Wheels

Muirwoods 29” Wheels

Straight blade steel fork and 29” wheels can tackle aggressive urban riding.

Reflective Graphics

Reflective Graphics

3M Reflective decals provide additional low-light visibility.

Urban Disc Brakes

Urban Disc Brakes

Disc brakes provide powerful braking and control in all weather and commuting conditions.

Bike Specs

Specs and pricing are subject to change without notice. Weights may vary based on size and parts.

Bike Frame Specs
Frame: Double Butted CrMo, 29” Wheels, Disc Mount
Suspension/Fork Specs
Front Fork: CrMo, Fender and Rack Eyelets, IS Disc
Rear Suspension:
Drivetrain Specs
Engine:
Crankset: SR Suntour XCR6, 48/36/26T, Ring Guard
Derailleur Rear: Shimano Alivio Shadow
Shift Lever: Shimano Altus 9-Speed
Derailleur Front: Shimano Altus
Cassette: Shimano HG300 9-Speed, 12-36T
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Chain: KMC X9
Wheels Specs
Hub Rear: Forged Aluminum Alloy, 6-Bolt Disc, 32H
Hub Front: Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rim: Marin Aluminum DS700, Double Wall, Disc Specific
Spokes Nipples:
Tires: Schwalbe Citizen, 29”x1.6” / 700Cx42, Reflective Sidewall, Kevlar Puncture Protection
Brake Specs
Brakes Front: Shimano BR-M315 Hydraulic Disc, 160mm Rotor
Brakes Rear: Shimano M315 Hydraulic Disc, 160mm Rotor
Brake Levers: Shimano Hydraulic
Cockpit
Handlebar: Marin Flat Top Riser
Grips: Marin Custom
Stem: Marin 3D Forged Alloy
Headset: FSA No.8D, Sealed Cartridge Bearings
Seatpost: Marin Alloy
Saddle: Marin Fitness
Accessories
Pedals: Commute Platform
Chain Cover:
Rack:
Fenders:
Lights:
Kickstand:

Bike Geometry

Sizes S M L XL XXL
Wheel Size
Stack 567 574 583 593 612
Reach 387 420 432 434 431
Head Tube Angle 71 72 72 72 72
Stem Length (mm) 70 70 90 90 110
Head Tube Length (mm) 123 123 133 143 163
Seat Tube Angle 74 73.5 73.5 73 72
Seat Tube Angle Virtual
Seat Tube Actual 381 432 483 521 559
Crank Length (mm) 170 175 175 175 175
Top Tube Actual (mm) 535.6 566.6 581.6 592.3 606.8
Top Tube Effective (mm) 550 590 605 615 630
BB Height 283 283 283 283 283
BB Drop 70 70 70 70 70
Fork Offset 51 45 45 45 45
Stand Over Height 663 705 748 779 811
Wheel Base 1052 1070 1086 1090 1094
Chain Stay (mm) 445 445 445 445 445
Seat Post (mm) 27.2 27.2 27.2 27.2 27.2
