Marin Fitness

Marin Fitness

Overview

MSRP • $429.99

Color • Gloss Black & Gloss Blue

FITNESS ROAD RIDING

COMMUTING

BIKE PATH RIDING

The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.

Size Rider Height Range
XS (Fairfax)
4'11" to 5'2"
S (Fairfax)
5'3" to 5'6"
M (Fairfax)
5'6" to 5'10"
L (Fairfax)
5'10" to 6'2"
XL (Fairfax)
6'2" to 6'4"
-----------------
---- to ----
S (Terra Linda)
4'11" to 5'2"
M (Terra Linda)
5'3" to 5'6"
L (Terra Linda)
5'6" to 5'10"

Spec

FRAME

Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Fender and Rack Mounts

FORK

Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets

RIMS

Marin Aluminum Double Wall, Machined Sidewall

HUB REAR

Forged Aluminum Alloy, Disc, 32H

HUB FRONT

Forged Aluminum Alloy, Disc, 32H

SPOKES

14g Stainless Steel

TIRES

Marin Fitness 700Cx35

DERAILLEUR REAR

Shimano Tourney, 7-Speed

DERAILLEUR FRONT

Shimano TY510

SHIFT LEVER

Shimano EF41 Shifter/Brake Lever Combo,3x7-Speed

CRANKSET

Shimano FC-TY301, 48/38/28T, Ring Guard

BOTTOM BRACKET

Sealed Cartridge Bearings, Square Taper

CHAIN

KMC Z50

CASSETTE

SunRace 7-Speed, 11-34T

BRAKES FRONT

Tektro Mechanical Disc Brake

BRAKES REAR

Tektro Mechanical Disc Brake

BRAKE LEVERS

Shimano w/ Integrated Shifters

HANDLEBAR

Marin Alloy, 30mm Rise

STEM

Marin Alloy Threadless

GRIPS

Marin Commute

HEADSET

FSA, Threadless

SEATPOST

Marin Alloy

SADDLE

Marin Fitness Plush

PEDALS

Commute Platform

EXTRAS

---

SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

Geometry

Bike Geometry
Type XS S M L XL
STACK (A) 557.89 576.97 596.04 615.11 643.73
REACH (B) 384.74 394.09 403.44 411.94 423.19
HEADTUBE ANGLE (C) 72.5° 72.5° 72.5° 72.5° 72.5°
HEADTUBE LENGTH (D) 135 155 175 195 225
SEATTUBE ANGLE (VIRTUAL) (E) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE ANGLE (ACTUAL) (F) 73.5° 73.5° 73.5° 73.5° 73.5°
SEATTUBE LENGTH (G) 381 431.8 482.6 520.7 558.8
TOPTUBE (ACTUAL) (H) 530.6 542.6 557.2 574.6 596.6
TOPTUBE (EFFECTIVE) (I) 550 565 580 600 620
BOTTOM BRACKET HEIGHT (J) 300 300 300 300 300
BOTTOM BRACKET DROP (K) 65 65 65 65 65
CHAINSTAY (L) 432 432 432 432 432
WHEELBASE (M) 1014.42 1029.78 1045.15 1059.66 1079.93
STANDOVER HEIGHT (N) 679.9 725.7 770 803.5 839.1
FORK OFFSET (O) 45 45 45 45 45
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 640 640 660 660 660
STEM LENGTH 70 70 90 90 90
CRANK LENGTH 170 170 175 175 175

Technology

Tech 1 Fitness Transit Series 2

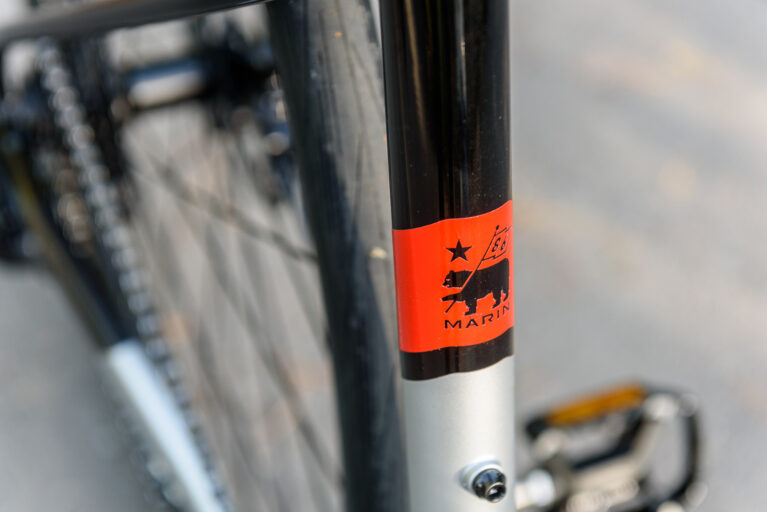

SERIES 1 FRAMES

Series 1 frames feature a 6061 aluminum frame with disc brake mounts, internal cable routing, and fender and rack mounts.

Tech 2 Fitness Transit

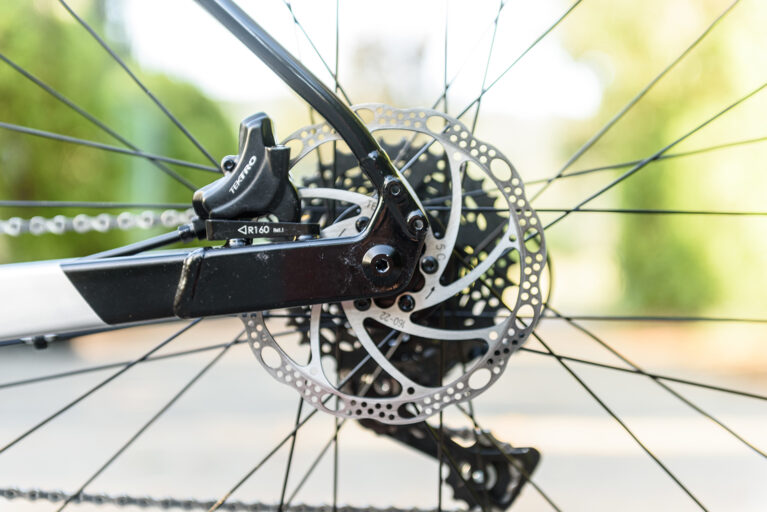

DISC BRAKES

Disc brakes on all Fairfax and Terra Linda models provide smooth, controlled stopping in all conditions with minimal maintenance.

Tech Sports Geometry Fitness Transit

SPORTS FITNESS GEOMETRY

Fairfax and Terra Linda models are designed with Marin’s sport fitness geometry, with a 72.5° headtube angle, giving the bike a light and lively feel, while maintaining stability and control.
