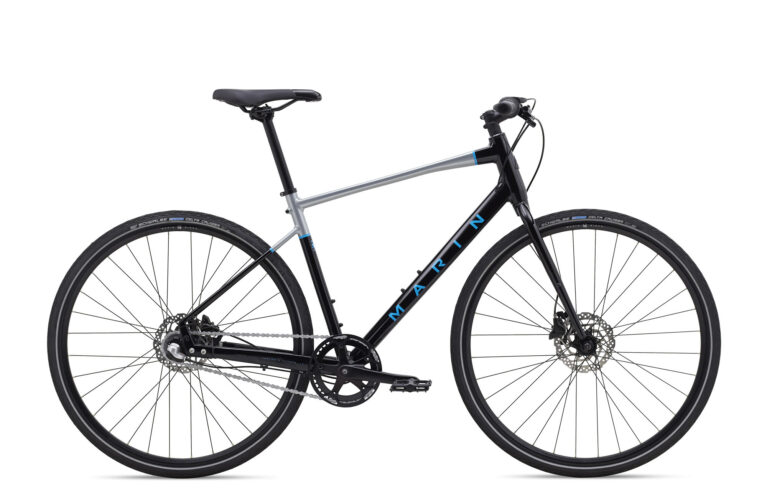

Marin Presidio
Overview
MSRP • $649.99
Color • Gloss Black
COMMUTING
CITY TRANSIT
The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Internal gearing, disc brakes, puncture resistant tires and highperformance belt drives or corrosion-resistant chains arebuilt tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.
| Size | Rider Height Range |
|---|---|
| XS | 4'11" to 5'1" |
| S | 5'1" to 5'5" |
| M | 5'5" to 5'9" |
| L | 5'9" to 6'1" |
| XL | 6'1" to 6'3" |
Spec
FRAME
Series 2 Commute, 6061 Aluminum, 700C Wheels, Disc Brake, Fender and Rack Mounts
FORK
Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
RIMS
Marin Aluminum Double Wall, Disc Specific
HUB REAR
Shimano Nexus 3D 3-Speed Internally Geared Hub, Centerlock Disc, 32H
HUB FRONT
Forged Aluminum Alloy, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire, Baldy, 700x32, Puncture Protection, Reflective Sidewall, Wire Bead
DERAILLEUR REAR
---
DERAILLEUR FRONT
---
SHIFT LEVER
Shimano Nexus Twist Shifter 3-Speed
CRANKSET
Forged Alloy, 42T, 140mm, Ring Guard
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC Z410RB w/ Anti-Corrosion Coating
CASSETTE
Shimano Nexus Cog, 19T
BRAKES FRONT
Tektro M275 Hydraulic, 160mm Rotor
BRAKES REAR
Tektro M275 Hydraulic, 160mm Rotor
BRAKE LEVERS
Tektro Hydraulic
HANDLEBAR
Marin Alloy Flat
STEM
Marin Alloy
GRIPS
Dual Density Ergonomic
HEADSET
FSA No.8B
SEATPOST
Marin Alloy
SADDLE
Marin Fitness Plush
PEDALS
Commute Platform
EXTRAS
---
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE
Geometry
| Type | XS | S | M | L | XL |
|---|---|---|---|---|---|
| STACK (A) | 557.89 | 576.97 | 596.04 | 615.11 | 643.72 |
| REACH (B) | 384.74 | 394.09 | 403.44 | 411.94 | 423.19 |
| HEADTUBE ANGLE (C) | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| HEADTUBE LENGTH (D) | 135 | 155 | 175 | 195 | 225 |
| SEATTUBE ANGLE (VIRTUAL) (E) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE ANGLE (ACTUAL) (F) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| SEATTUBE LENGTH (G) | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| TOPTUBE (ACTUAL) (H) | 530.6 | 542.6 | 557.2 | 576.2 | 596.6 |
| TOPTUBE (EFFECTIVE) (I) | 550 | 565 | 580 | 600 | 620 |
| BOTTOM BRACKET HEIGHT (J) | 280 | 280 | 280 | 280 | 280 |
| BOTTOM BRACKET DROP (K) | 65 | 65 | 65 | 65 | 65 |
| CHAINSTAY (L) | 435 | 435 | 435 | 435 | 435 |
| WHEELBASE (M) | 1017.5 | 1032.8 | 1048.2 | 1062.7 | 1083 |
| STANDOVER HEIGHT (N) | 659.9 | 705.6 | 750 | 783.5 | 819.1 |
| FORK OFFSET (O) | 45 | 45 | 45 | 45 | 45 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 620 | 620 | 640 | 640 | 640 |
| STEM LENGTH | 70 | 70 | 90 | 90 | 110 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
Technology
SERIES 2 FRAMES
Series 2 Commute 6061 aluminum frame, a Cr-Mo Steel fork, disc brakes, and rack and fender mounts with 700C wheels.
MARIN SLIDER DROPOUTS
Our new slider dropouts were created specifically to bring the best technologies for commute bikes into a clean and tidy package. The dropouts slide to tension belts and chains, while incorporating flat mount disc brakes, and a direct mount rear kickstand to support the bike where weight is centered with gear.
DISC BRAKES
Hydraulic disc brakes on all Presidio models offer more than just safe, secure stopping power in all conditions. Thehydraulic spec enhances long-term service, as there are nocables or housing to wear out.
INTERNALLY GEARED HUBS
Internally geared rear hubs pack anywhere between 3 and 11-speeds into a compact and low maintenance package.
